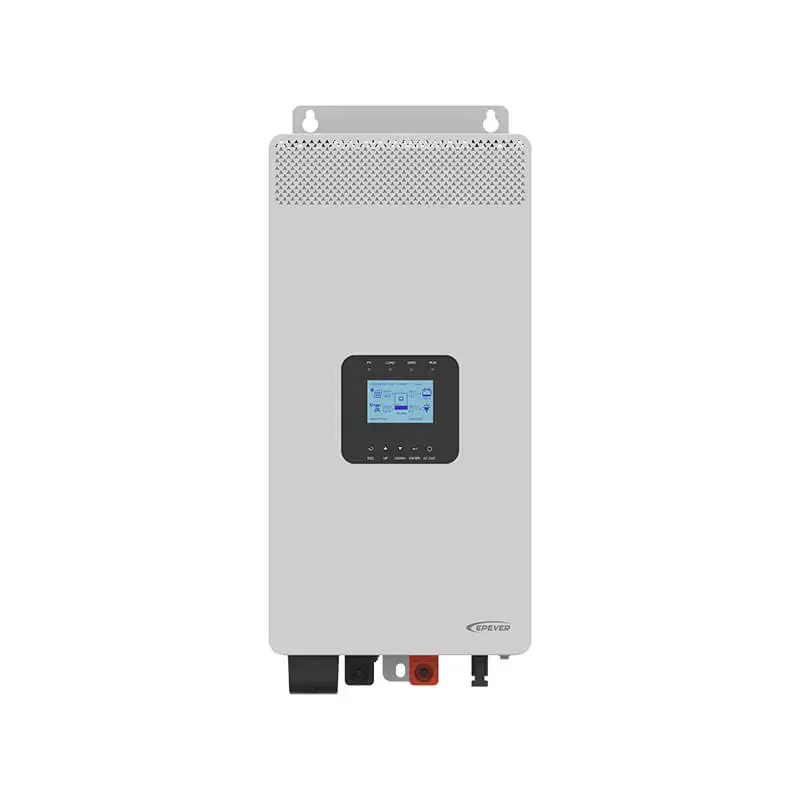

HP Series 20A (220/230VAC) 2000~5500W Inverter/Charger

[ Time：2026-04-07 ]

Details

Specification:

Model	HP2022-AH0750P20A	HP3522-AH1250P20A	HP3542-AH0650P20A	HP5542-AH1050P20A	HP2042-AH0450P20A
Utility input
Utility Voltage	176VAC to 264VAC (Default) ;90VAC to 280VAC (Configurable)
Utility Frequency	45Hz to 65Hz
Maximum Utility Charging Current	70A	110A	60A	100A	40A
Switch Response Time	Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
Inverter output
Inverter Rated Power (@30℃)	2000W	3500W	3500W	5500W	2000W
3-second Transient Surge Output Power	4000W	7000W	7000W	8500W	4000W
Inverter Output Voltage	220/230VAC±3%
Inverter Frequency	50/60Hz±0.2%
Output Voltage Waveform	Pure sine wave
Load Power Factor	0.2－1(VA ≤ Rated output power)
THDu (Total Harmonic Voltage Distortion)	≤3% (24V resistive load)		≤3% (48V resistive load)
Maximum Load Efficiency	90%	90%	92%	92%	90%
Maximum Inverter Efficiency	92%	93%	94%	94%	92%
Parallel Function	Yes, 12 units in standard, 16 units at most
Solar controller
PV Maximum Open-circuit Voltage	500V (At minimum operating environment temperature)
440V (At 25℃)
MPPT Voltage Range	85V to 400V
PV Maximum Input Power	3000W	4000W	4000W	6000W	3000W
MPPT Input Channels	One way			Two ways	One way
PV Maximum Input Current	One way, 10A	One way, 16A	One way, 16A	Two ways, 2x15A	One way, 10A
PV Maximum Short-circuit Current	One way, 12A	One way, 18A	One way, 18A	Two ways, 2x18A	One way, 12A
PV Maximum Charging Current	70A	120A	60A	100A	40A
MPPT Maximum efficiency	≥99.5%
Battery
Battery Rated Voltage	24VDC		48VDC
Battery Work Voltage Range	21.6VDC to 32.0VDC		43.2VDC to 60.0VDC
Battery Maximum Charging Current	70A	120A	60A	100A	40A
Others
No-load Losses	<1.1 A	<1.2A	<0.8A	<1.1 A	<0.8A
No-load Losses	Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @24V input		Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @48V input
Standby Current	<0.9A	<0.9A	<0.6A	<0.75A	<0.8A
Standby Current	Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @24V input		Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @48V input
Work Temperature Range	-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
Storage Temperature Range	-25℃ to +60℃
Enclosure	IP20
Relative Humidity	< 95% (N.C.)
Altitude	<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
Mechanical parameters
Dimension (Length x Width x Height)	629mm × 291.4mm × 163mm	654mm × 291.4mm × 163mm	629mm × 291.4mm × 163mm	679mm × 291.4mm × 163mm	679mm × 291.4mm × 163mm
Mounting size (Length x Width)	592mm x 200mm	617mm x 200mm	592mm x 200mm	642mm x 200mm	592mm x 200mm
Mounting hole size	Φ9mm/Φ10mm	Φ9mm/Φ10mm	Φ9mm/Φ10mm	Φ9mm/Φ10mm	Φ9mm/Φ10mm
Net Weight	13.3 Kg	15.3 Kg	14.3Kg	17.5Kg	13.3 Kg

Highlight:

*Pure sine wave output

*Supports battery or non-battery modes

*PFC technology reduces the demand on the power grid capacity

*Advanced MPPT technology, with max. tracking efficiency higher than 99.5%

*HP5542-AH1050P20A supports two PV inputs to improve PV utilization

*Supports charging from multiple types of generators

*Battery charging or discharging current limits are compatible with various types of batteries

*Adjustable maximum utility charging current for flexible configuration of utility charging power

*Large-size LCD display for better status monitoring

*RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring

*Comprehensive electronic protections

*-20℃~+50℃ operating temperature range to meet more environmental requirements*AC output supports parallel operation, standard configuration of 12 units in parallel

*AC output parallel operation supports single-phase and three-phase settings

*With the function of historical data recording, storage capacity for 25,000 records (the interval time of 1~3600 seconds settable)
