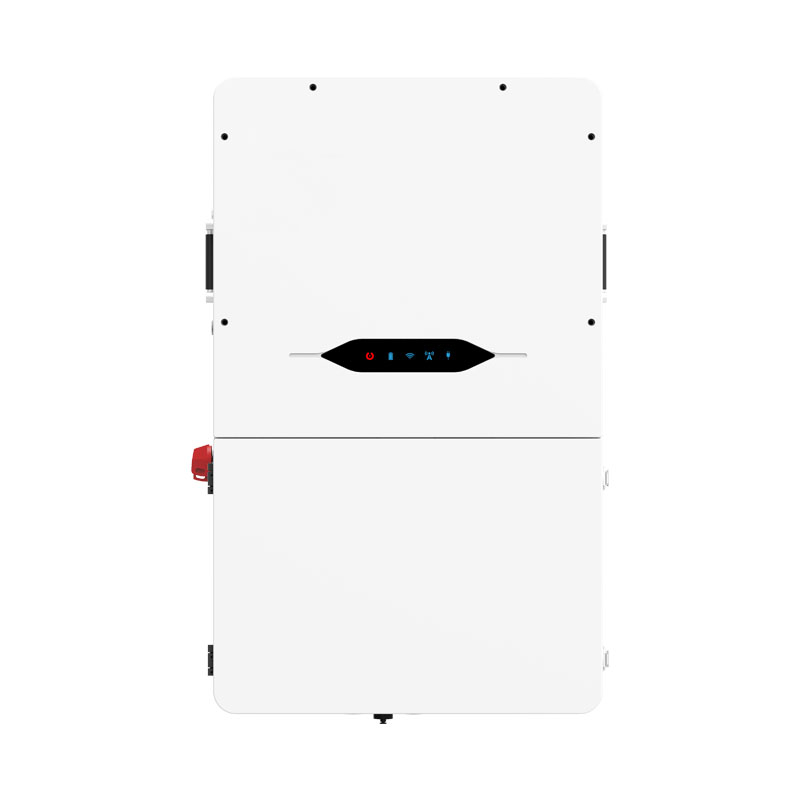

Specificaition
| Item | ELD6K | ELD8K | ELD10K | ELD12K | ELD15K |
| Battery Input Data | |||||
| Battery Type | Lithium/Lead Acid | ||||
| Battery Voltage Range/Rated voltage | 40V-60V | ||||
| Charging mode | Three-stage charging mode or Self-adaption to BMS | ||||
| Max. Continuous Charging/Discharging Current | 140A | 185A | 240A | 275A | 275A |
| PV String Input Data | |||||
| Max. Input Power | 9000W | 12000W | 15000W | 18000W | 22500W |
| Max. Input Voltage | 500V | ||||
| MPPT Operating Voltage Range | 90V-450V | ||||
| Start-up Voltage | 100V | ||||
| Nominal Input Voltage | 300V | ||||
| Max. Input Current per MPPT | 20A | ||||
| Max. Short Circuit Current per MPPT | 25A | ||||
| Number of MPPTs/Number of Strings per MPPT | 2/1 | 3/1 | 4/1 | 4/1 | 4/1 |
| Generator Input Data | |||||
| Rated input power | 6000W | 8000W | 10000W | 12000W | 15000W |
| Rated input current | 25A | 33.3A | 41.6A | 50A | 62.5A |
| Rated input voltage | L1/L2/N/PE 120V/240V | ||||
| Rated input frequency | 50/60Hz | ||||
| AC Output Data (On-grid) | |||||
| Nominal Apparent Power Output to Utility Grid | 6000VA | 8000VA | 10000 VA | 12000 VA | 15000 VA |
| Nominal Output Voltage | 120V/240V split phase; 120V/208V 2/3 phase | ||||
| Nominal AC Grid Frequency | 50/60Hz | ||||
| Max. AC Current Output to Utility Grid | 25A | 33.3A | 41.6A | 50A | 62.5A |
| Max. AC Current From Utility Grid | 50A | 66.6A | 80A | 80A | 80A |
| Power Factor | 0.99 (Adjustable from 0.8 leading to 0.8 lagging) | ||||
| Max. Total Harmonic Distortion | <3% | ||||
| AC Output Data (Back-up) | |||||
| Max. Output Apparent Power | 6,000VA | 8,000VA | 10,000VA | 12,000VA | 15,000VA |
| Peak Power, Time | 2 times of rated power,10s | 1.5 times of rated power, 10s | |||
| Max. Output Current | 25A | 33.3A | 41.6A | 50A | 62.5A |
| Rated Grid Voltage | 120V/240V split phase; 120V/208V 2/3 phase | ||||
| Rated Grid Frequency | 50/60Hz | ||||
| Output THDv (@Linear Load) | < 3% | ||||
| Switch time | < 10ms | ||||
| Efficiency | |||||
| Max. Efficiency | 97.26% | ||||
| Max. Battery to AC Efficiency | 96.57% | ||||
| MPPT Efficiency | 99.90% | ||||
| Protection | |||||
| Protection | PV Insulation Resistance Detection, Anti-islanding Protection, AC Overvoltage Protection, Residual Current Detection, AC Overcurrent Protection, Ground Fault Detection, PV Reverse Polarity Protection, AC Short Circuit Protection | ||||
| Surge protection | DC Type II / AC Type Ⅲ | ||||
| DC Switch | Yes | ||||
| AFCI | Optional | ||||
| Rapid Shutdown(RSD) | Optional | ||||
| Environment parameters | |||||
| Mechanical Parameters | -25℃~+60℃(＞45℃ Derating ) | ||||
| Relative Humidity | 5% to 95% | ||||
| Altitude | 4,000 m (> 2,000 Derating) | ||||
| Ingress Protection Rating | TYPE 3R | ||||
| Noise | < 60dB | ||||
| Mechanical Parameters | |||||
| Dimension L×W×D (mm) | 840 × 513 × 283 | ||||
| Weight (Kg) | 53 | ||||
| Others | |||||
| Automatic Generator Start | 2 Wire Start - integrated | ||||
| Standby losses | ＜30W | ||||
| Topology | Non-isolation | ||||
| Cooling Method | Intelligent air cooling | ||||
| Mounting Method | Wall mounted | ||||
| Communication with BMS | RS485/CAN | ||||
| Communication with Meter | RS485 | ||||
| Communication with Portal | Wi-Fi / Bluetooth (External) | ||||
| Display | LCD/LED & APP | ||||
| Warranty | 5 Years | ||||
| Certification | IEEE1547;IEEE1547.1;UL1741SB;UL1741;UL1699B;UL1998; CSA C22.2 NO.107.1:16;CSA C22.2 NO.292-18 | ||||
Highlight
*High Efficiency: 150% PV oversizing capability; Max. PV input power: 22500W; Max. 4 MPPTs; Max. PV input voltage: 500VDC; Input current per string: 20A; Max input current: 80A; Overload capability: 200% for 10s
*Smart Power Management: Smart interface: ① Generator connection ② Load connection ③ AC coupling with grid-tied PV inverters; UPS-level switching <10 ms; Supports 100% unbalanced loads in off-grid mode; Parallel Capability: ① Up to 6 units in parallel (On-grid & Off-grid) ② Multi-battery parallel support: independent or shared battery bank; Zero export function; Feed-in power limit
*User-Friendly Monitoring: Optional LCD display; Standard RS485 communication port; WiFi / GPRS (Optional)
*Reliable & Safe: Type 3R-rated protection; Built-in Type II SPD; Optional function: RSD, AFCI
