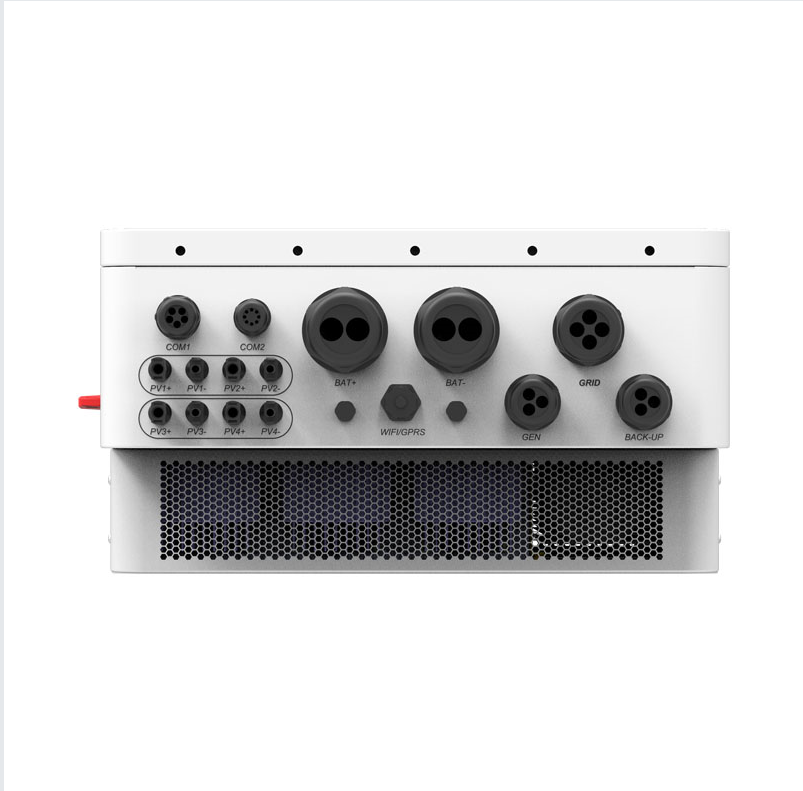

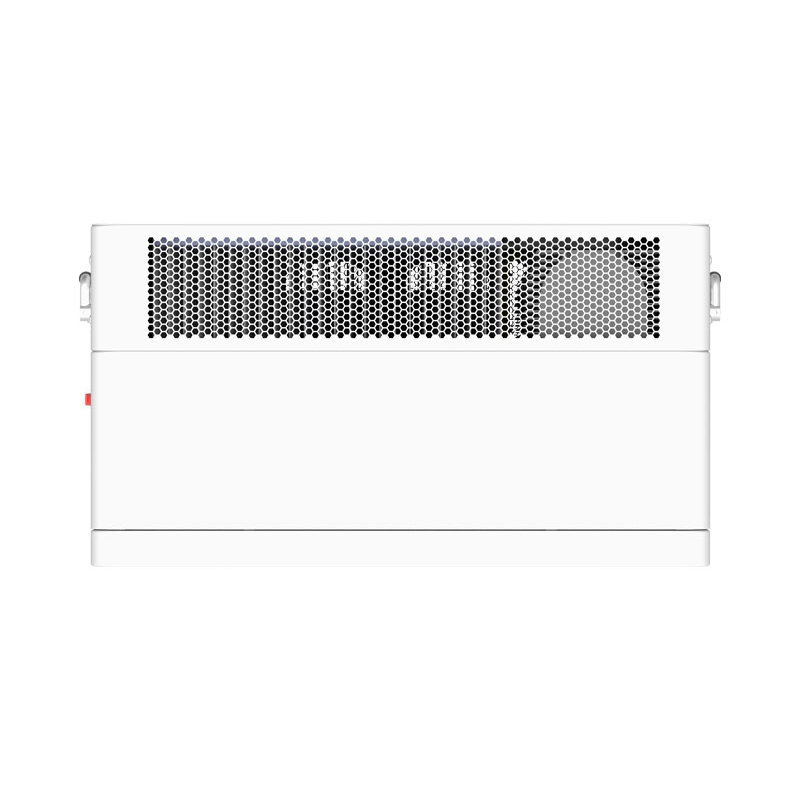

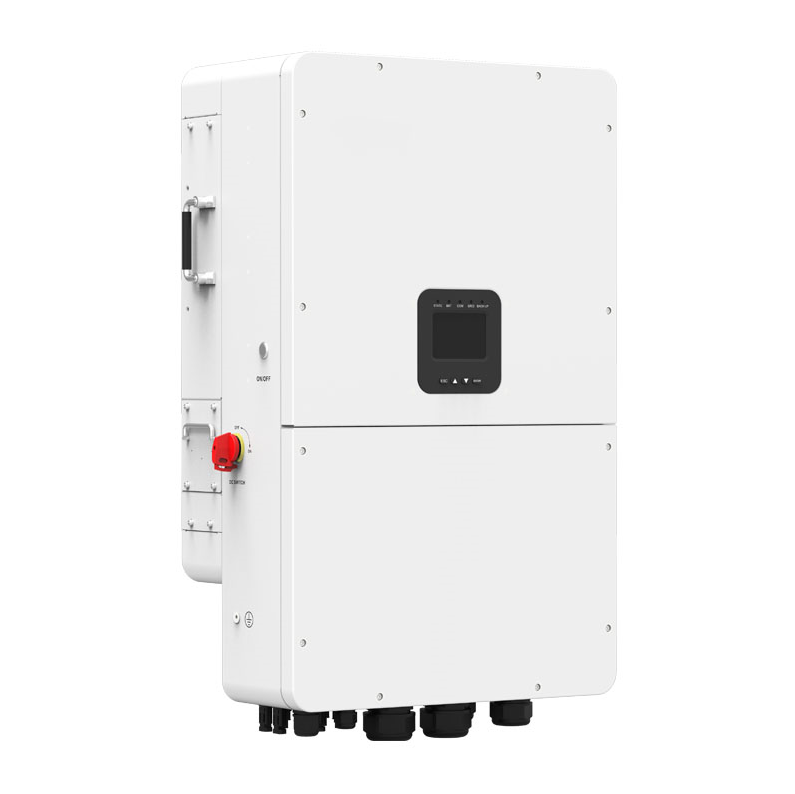

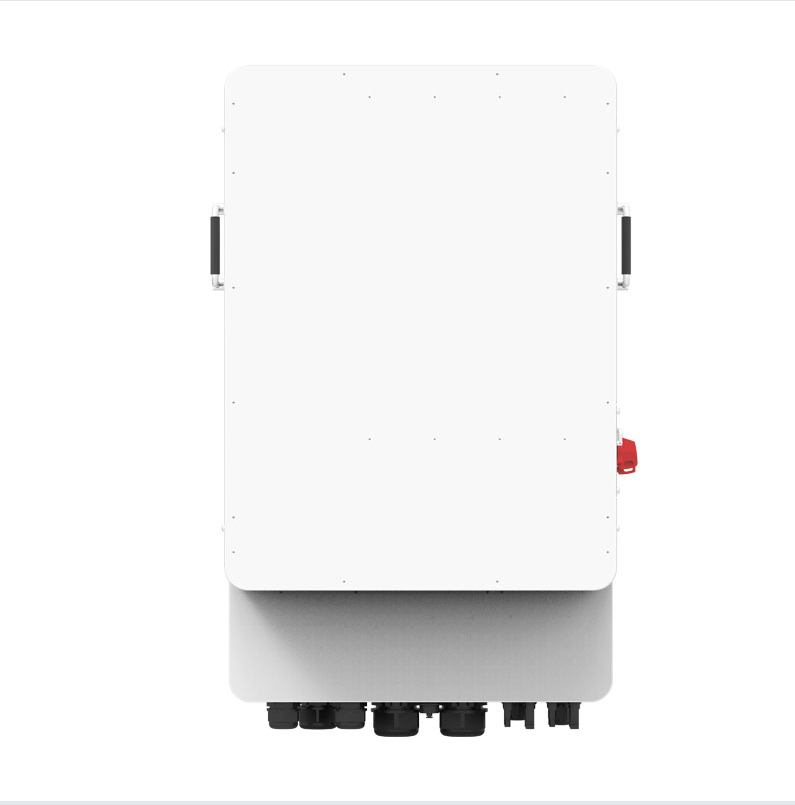

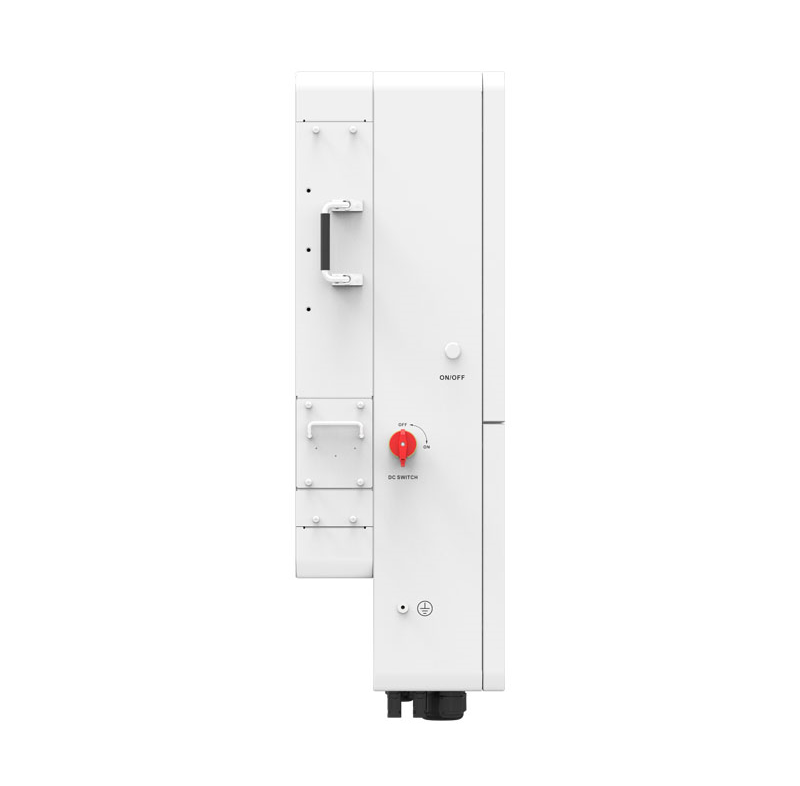

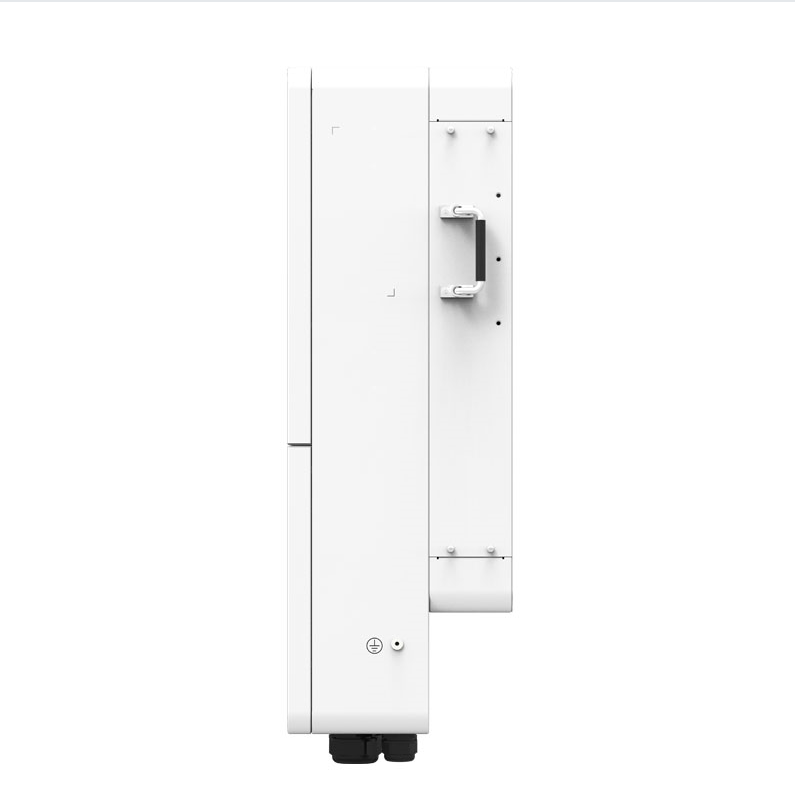

7.5-15kw single phase residential hybrid inverter
Specificaitons:
| Model | ELS7K5 | ELS8K | ELS10K | ELS12K | ELS15K |
| Battery (DC) | |||||
| Battery Type | Lithium battery/Lead-acid battery | ||||
| Voltage Range | 40V-60V | ||||
| Rated Voltage | 48V/51.2V | ||||
| Charging Rule | 3-stage charging or BMS command | ||||
| Max. Charging and Discharging Current | 190A | 240A | 275A | ||
| PV Input (DC) | |||||
| Max. Input Power | 12,000W | 12,000W | 15,000W | 18,000W | 22,500W |
| Max. Input Voltage | 500V | ||||
| Start-up Voltage | 100V | ||||
| Rated Input Voltage | 300V | ||||
| Max. Input Current per MPPT | 20A | ||||
| MPPT Voltage Range | 90V-450V | ||||
| Max. Short Circuit Current per MPPT | 27A | ||||
| Number of MPPTs/Number of Strings per MPPT | 3 | 4 | |||
| Generator Input (AC) | |||||
| Rated Input Power | 7,499W | 8,000W | 10,000W | 12,000W | 15,000W |
| Rated Input Current | 34.1A/32.6A/31.3A | 36.4A/34.8A/33.4A | 45.5A/43.5A/41.7A | 54.6A/52.2A/50A | 68.2A/65.2A/62.5A |
| Rated Input Voltage | 220/230/240V | ||||
| Rated Input Frequency | 50/60Hz | ||||
| AC Output (On-grid) | |||||
| Rated Output Power | 7,499W | 8,000W | 10,000W | 12,000W | 15,000W |
| Max. Output Apparent Power | 7,499VA | 8,800VA | 11,000VA | 13,200VA | 15,000VA |
| Max. Input Power From Grid | 12,100VA | 12,100VA | 14,960VA | 17,600VA | 17,600VA |
| Rated Output Current From Grid | 34.1A/32.6A/31.3A | 40A/38.3A/36.7A | 50A/47.9A/45.9A | 60A/57.4A/55A | 68.2A/65.2A/62.5A |
| Max. Output Current | 40A | 50A | 60A | 68.2A | |
| Max. Input Current From Grid | 55A | 68A | 80A | ||
| Rated Grid Voltage | 220/230/240V | ||||
| Rated Grid Frequency | 50/60Hz | ||||
| THDi | < 3% | ||||
| Power Factor | 0.99 (Adjustable from ± 0.8 leading to 0.8 lagging) | ||||
| AC Output (Off-grid) | |||||
| Rated Output Power | 7,499W | 8,000W | 10,000W | 12,000W | 15,000W |
| Overload Power, Time | 2* Rated Power, 10s | 1.5* Rated Power, 10s | |||
| Rated Output Current | 34.1A/32.6A/31.3A | 36.4A/34.8A/33.4A | 45.5A/43.5A/41.7A | 54.6A/52.2A/50A | 68.2A/65.2A/62.5A |
| Rated Output Voltage | 220/230/240V | ||||
| Rated Output Frequency | 50/60 (±0.5%)Hz | ||||
| THDu (@Linear Loads) | < 3% | ||||
| Switch Time | 10ms | ||||
| Efficiency | |||||
| Max. Efficiency | 96.50% | 97% | 97.50% | 97.60% | |
| European Efficiency | 95.50% | 96.20% | 96.50% | 96.60% | |
| Max. Discharging Efficiency | 94.60% | ||||
| Protection | |||||
| Basic Protection | PV Insulation Resistance Detection Anti-islanding Protection AC Over current Protection AC Over voltage Protection Over temperature protection AC Short Circuit Protection Residual Current Detection PV Reverse Polarity Protection | ||||
| AFCI | Optional | ||||
| DC Switch | Yes | ||||
| SPD | DC Type II/AC Type III | ||||
| Rapid Shutdown (RSD) | Optional | ||||
| Environmental Parameters | |||||
| Operating Temperature | -25℃ to +60℃ (> 45℃ Derating) | ||||
| Relative Humidity | 0% to 95% (N.C.) | ||||
| Altitude | 4,000m (> 2,000m Derating) | ||||
| Ingress Protection | IP65 | ||||
| Noise Emission | < 60dB | ||||
| Mechanical Parameters | |||||
| Dimensions(L × W × H)(mm) | 840 × 513 × 283 | ||||
| Weight(kg) | 52 | ||||
| Others | |||||
| Generator Auto Start-up | 2 Wire start | ||||
| Standby Losses | < 30W | ||||
| Topology | High-Frequency Isolation (Battery) | ||||
| Cooling Method | Intelligent air cooling | ||||
| Mounting Method | Wall mounted | ||||
| Communication with BMS | RS485/CAN | ||||
| Communication with Meter | RS485 | ||||
| Communication with Portal | WiFi/Bluetooth (External) | ||||
| Display | LCD & APP | ||||
| Warranty | 5 years | ||||
Overview:
The ELS7.5-15k Series low-voltage single-phase on-grid hybrid inverter is designed for residential, industrial, and commercial
energy storage applications. It integrates energy storage and grid export capabilities for intelligent, efficient energy management.
During the day, PV energy can be routed to power loads, charge batteries, or export to the grid, helping improve returns and
operational flexibility. At night or during peak-rate hours, the battery can discharge to support continuous power supply. The
system also supports charging batteries from the grid, allowing energy to be stored anytime for backup.
Built for diverse and demanding usage scenarios, the ELS series delivers safe, reliable performance while helping maximize self-
consumption and giving users greater control over their energy, balancing cost savings with energy independence.
Features:
Reliable Outdoor Operation
IP65 protection
Optional function: RSD, AFCI
Built-in Type II surge protection
User-Friendly Monitoring
Standard color LCD display
Optional WiFi/GPRS for local and remote operation
On-Grid Hybrid Inverter
150% PV oversizing capability; Max. PV input power: 22500W
4 MPPTs; 20A per string
High Performance
High-power output and rapid energy storage; Max. charge/discharge current: 275A
Overload capability: 200% for 10s
Smart Power Management
Smart interface:
① Generator connection
② Load connection
③ AC coupling with grid-tied PV inverters
UPS-level switching <10 ms
Parallel Capability:
① Up to 6 units in parallel (On-grid & Off-grid)
② Multi-battery parallel support: Independent or shared battery bank
Zero export function; Feed-in power limit
User-Friendly Monitoring:
Standard color LCD display
Optional WiFi/GPRS for local and remote operation
|
|
|
|
|
|
