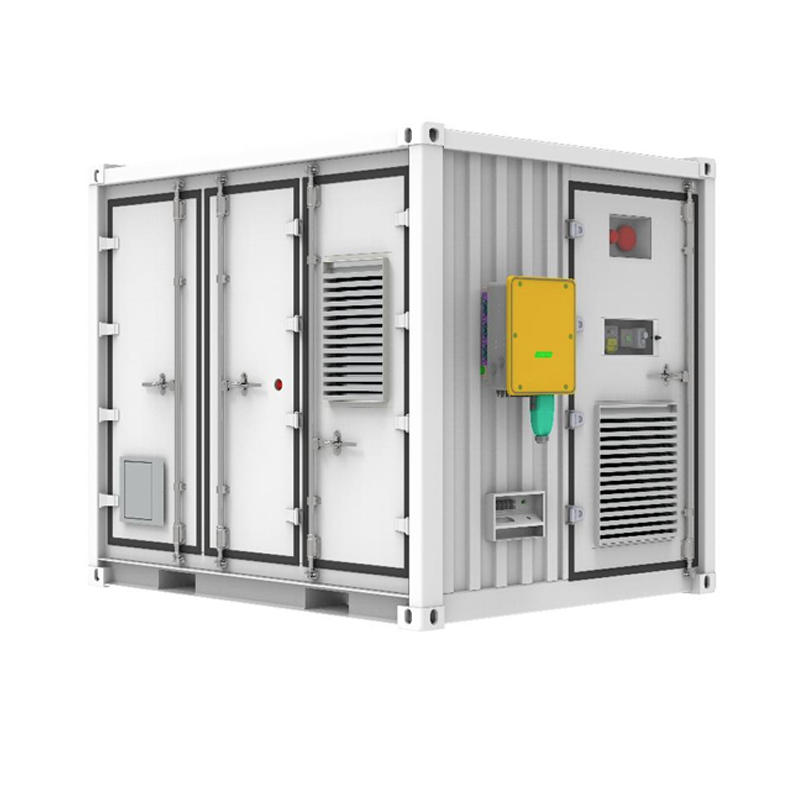

5MWH Liquid-cooled Battery Container
The 20-ft 5MWH liquid-cooled battery ESS container integrates PACK, EMS, BMS, HVAC, and fire suppression system (FSS) into a single container. Designed for demanding applications, the 20-ft liquid-cooled ESS container is suitable for power generation, grid,and commercial & industrial (C&I) ESS scenarios that require high power and flexible capacity
Specification
| Item | SQT-B20FT5015LP-2 |
| Cell Type | LFP314 Ah |
| Pack Configuration | 104.5kWh / 1P104S |
| System Configuration | 5.015MWh / 12P416S |
| Rated DC Voltage | 1331.2 V |
| DC Voltage Range | 1165 ~ 1498 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% （25 ± 2 ℃） |
| Cycle Life | ≥ 8,000 cycles |
| Fire Suppression System | Aerosol system+Water spray system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Altitude | 4500m |
| Dimensions (W*D*H) | 6,058*2,438*2,896 mm |
| Weight | 41.8t |
| Safety/EMC | UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
