All-in-One, Pre-Assembled Solution for Utility-Scale & Large Commercial & Industrial Applications
The 20-ft 2170kWh/1000kW liquid-cooled battery energy storage container is a high-capacity, fully integrated, all-in-one solution designed for utility-scale and large commercial & industrial applications. It combines high-density battery packs, a powerful PCS, EMS, BMS, advanced thermal management, and fire suppression into a single, standardized container for rapid deployment and superior performance.
Engineered for large-scale peak shaving, renewable integration, grid stability services, and backup power, it features advanced LFP chemistry, efficient liquid cooling, and a robust containerized design capable of withstanding demanding environmental conditions.
2170kWh capacity in a standard 20-ft container, delivering industry-leading energy density for utility-scale projects.
Advanced thermal management system ensures optimal temperature control for 1000kW continuous power output, maximizing battery life and safety.
Pre-integrated and factory-tested for minimal on-site installation time. Designed for easy scaling in multi-container configurations.
Meets stringent international standards for grid interconnection, safety, and EMC, suitable for primary frequency response and voltage support.

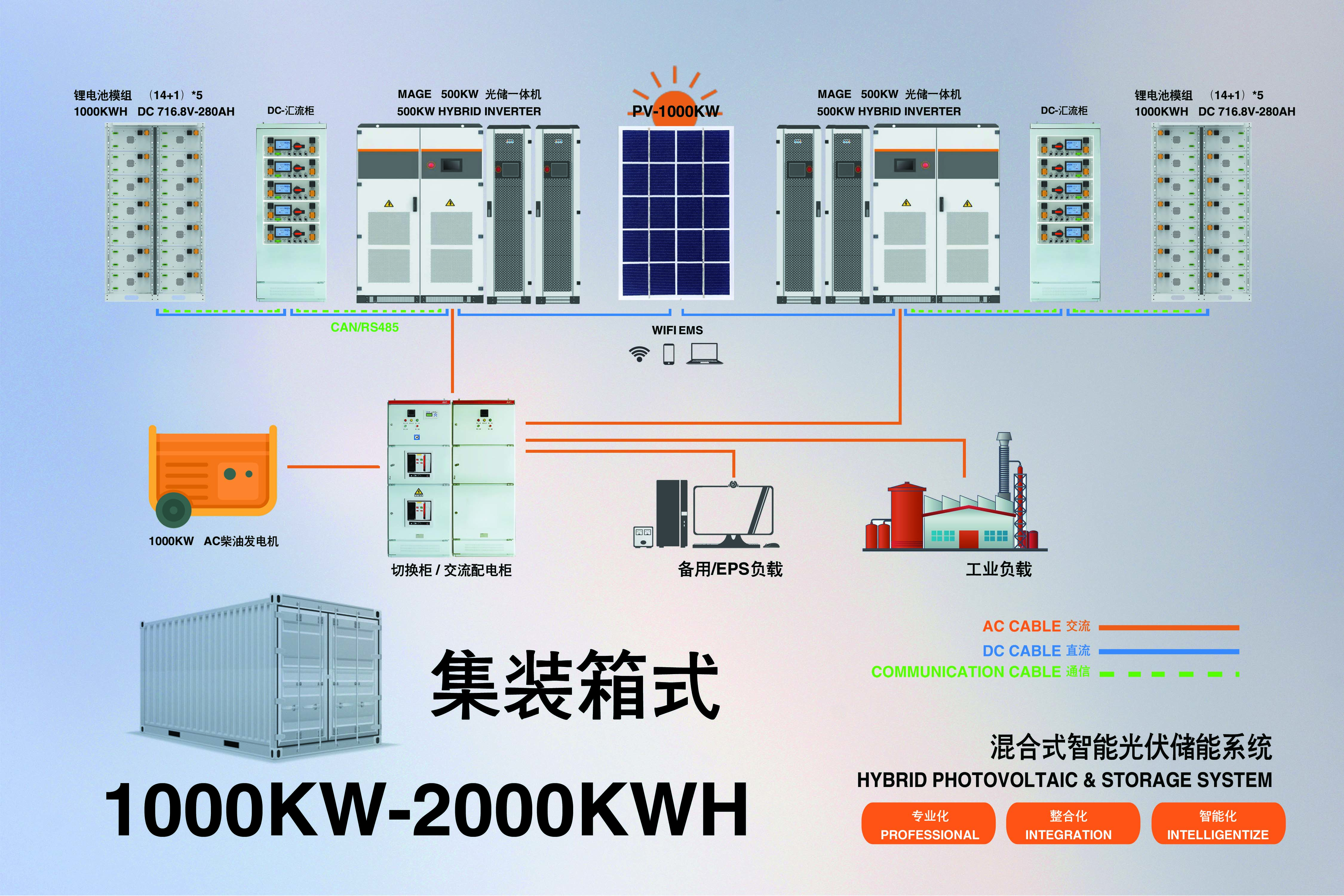

The system efficiently stores electricity from the grid or renewable sources and dispatches it on demand to support large-scale energy management. The integrated management systems ensure safety, efficiency, and longevity under high-power operation.
AC power is converted to DC to charge the high-capacity LFP battery system at rates up to 1000kW.
2170kWh of energy is stored in LFP cells. The liquid cooling system maintains uniform temperature across the large battery bank.
Advanced EMS and BMS monitor and control the high-power system for optimal performance, safety, and grid interaction.
DC power is converted back to AC and can supply up to 1000kW to the grid or local loads as required, supporting large-scale demand.
Significantly reduce electricity demand charges and capacity costs by discharging stored energy during peak tariff periods for utilities and large factories.
Provide firm capacity, smooth large-scale renewable output, and store excess generation for time-shifting, enabling higher penetration of renewables.
Ensure power continuity for critical infrastructure, remote communities, and industrial parks. Provide black start capability and grid-forming services.
Power large-scale irrigation systems, processing plants, and mining equipment, dramatically reducing reliance on expensive diesel generators.
Support high-power EV fast charging hubs and electric bus/truck fleets without requiring massive and costly grid infrastructure upgrades.
Deliver fast-responding frequency regulation (FR), voltage support, and other ancillary services to transmission and distribution system operators.
Complete technical parameters for the 2170kWh / 1000kW liquid-cooled energy storage container system.
| Specifications | |
|---|---|
| DC Side | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh / 1P48S |
| System Configuration | 2170 kWh / 9P240S |
| Rated DC Voltage | 768 V |
| DC Voltage Range | 672~864 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25±2℃) |
| AC Side | |
| Rated Output Power | 1000 kW |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/-1~+1 |
| THDi | ≤3% |
| DC Ratio | <0.5% lpn |
| General | |
| Max. Round Trip Efficiency | 89% |
| Cycle Life | ≥8,000 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol system+Water spray system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Noise | ≤80 dB |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions (W*D*H) | 6,058 * 2,438 * 2,591mm |
| Weight | 28t |
| Safety/EMC | UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC629 |
| Grid code | EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CE0-21, C11 |
Our state-of-the-art manufacturing facility with advanced production lines and strict quality control processes, capable of producing high-capacity utility-scale energy storage systems.

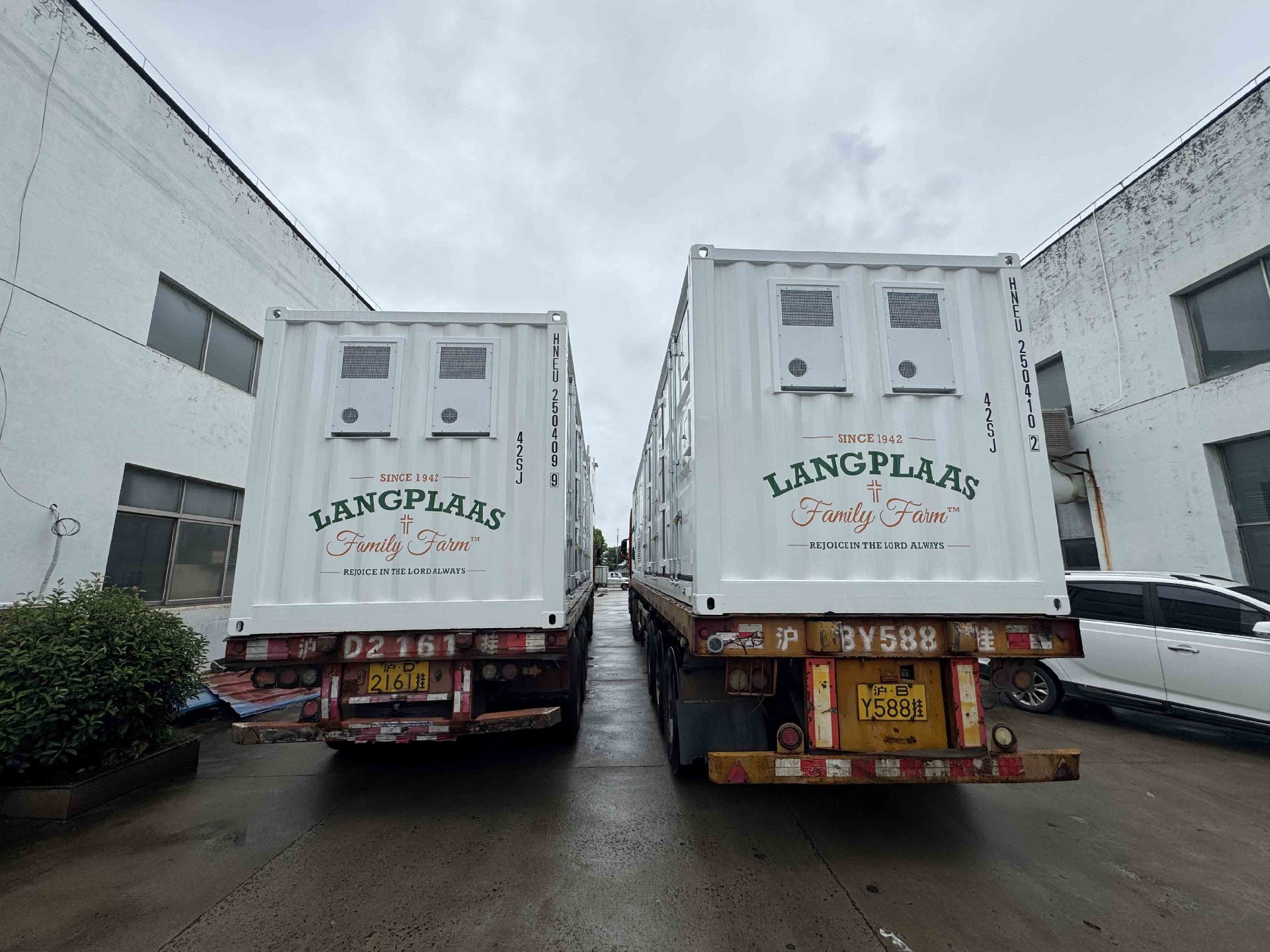

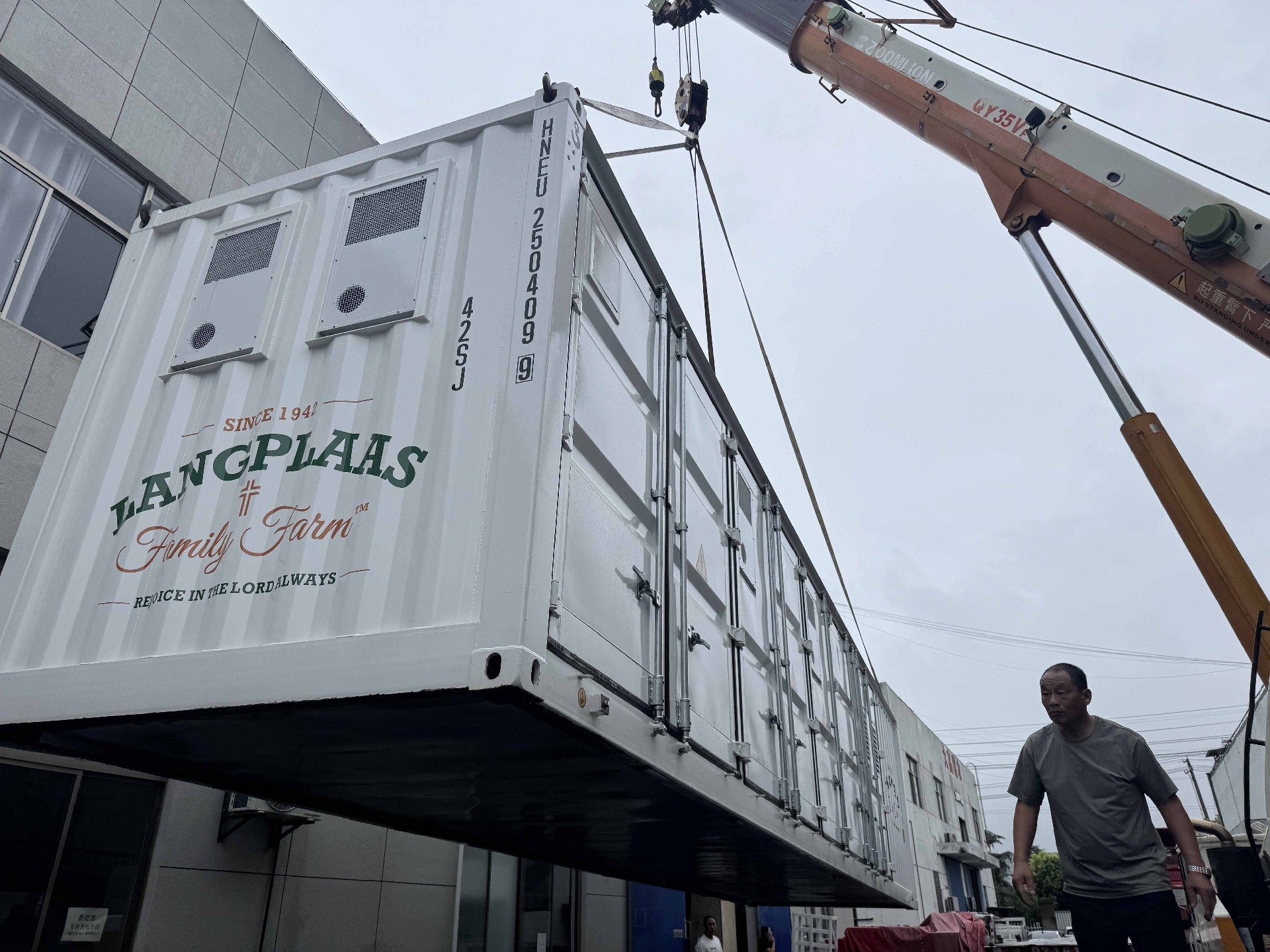

Our high-capacity energy storage containers have been successfully deployed in various utility-scale and large commercial projects worldwide.
For detailed quotations, system customization, or technical datasheets for our 2170kWh/1000kW utility-scale solution, please contact our sales team.
