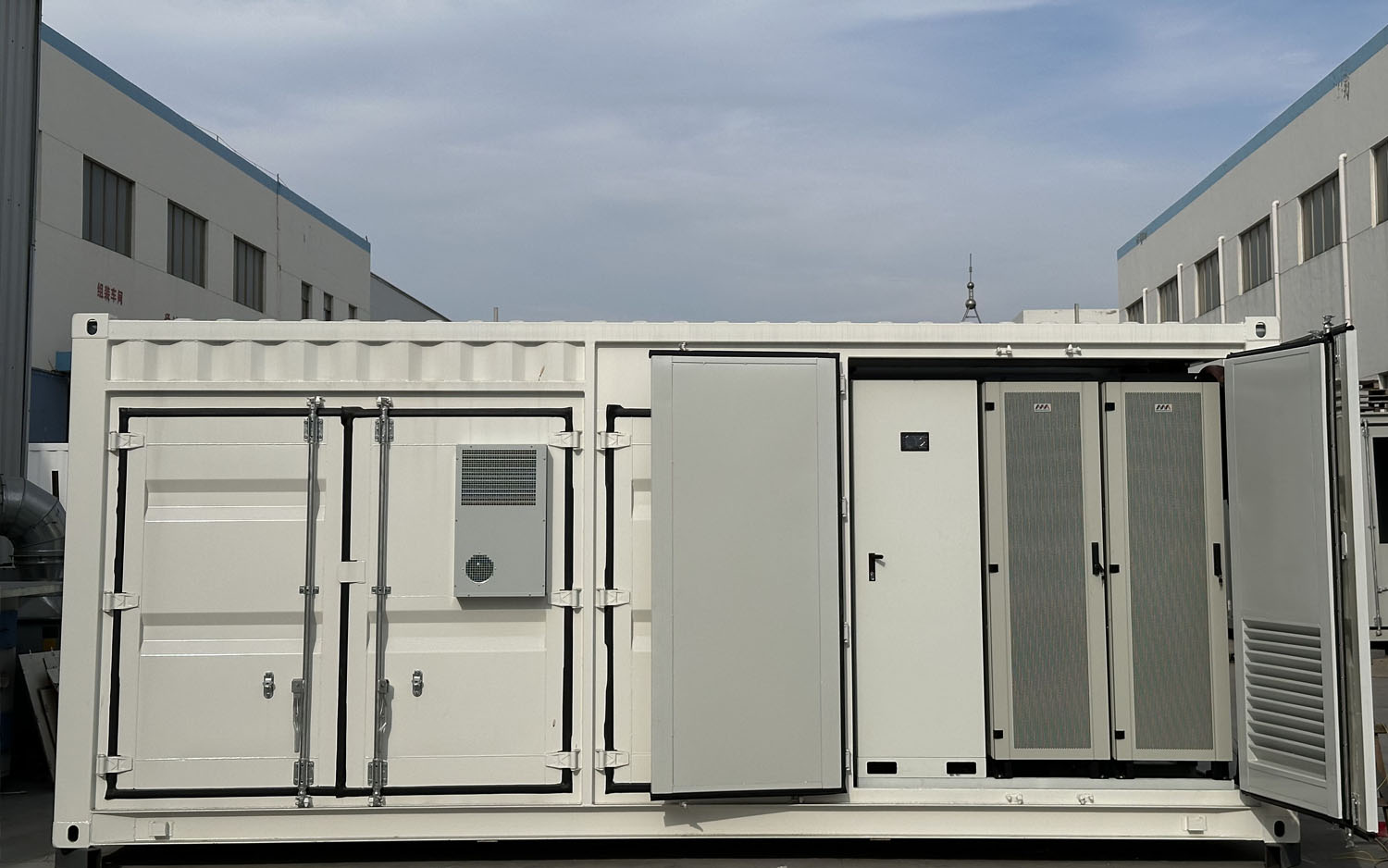

All-in-One, Pre-Assembled Solution for Medium to Large Commercial & Industrial Applications
The 20-ft 1000kWh/500kW liquid-cooled battery energy storage container is a balanced, high-performance, all-in-one solution designed for medium to large commercial and industrial (C&I) applications. It integrates battery packs, PCS, EMS, BMS, thermal management, and fire suppression into a single, standardized container for efficient deployment and reliable operation.
Optimized for daily cycling, peak shaving, renewable self-consumption, and backup power, it leverages advanced LFP chemistry and efficient liquid cooling to deliver long cycle life, safety, and stable performance in diverse operating environments.
1000kWh capacity in a 20-ft container, offering an optimal balance of energy storage and footprint for growing C&I needs.
Advanced thermal management ensures consistent cell temperatures, extending system life and maintaining 500kW power output reliability.
Fully pre-integrated and tested, enabling quick installation and commissioning to minimize project timelines.
Complies with international grid codes, facilitating seamless integration for demand charge management and renewable smoothing.

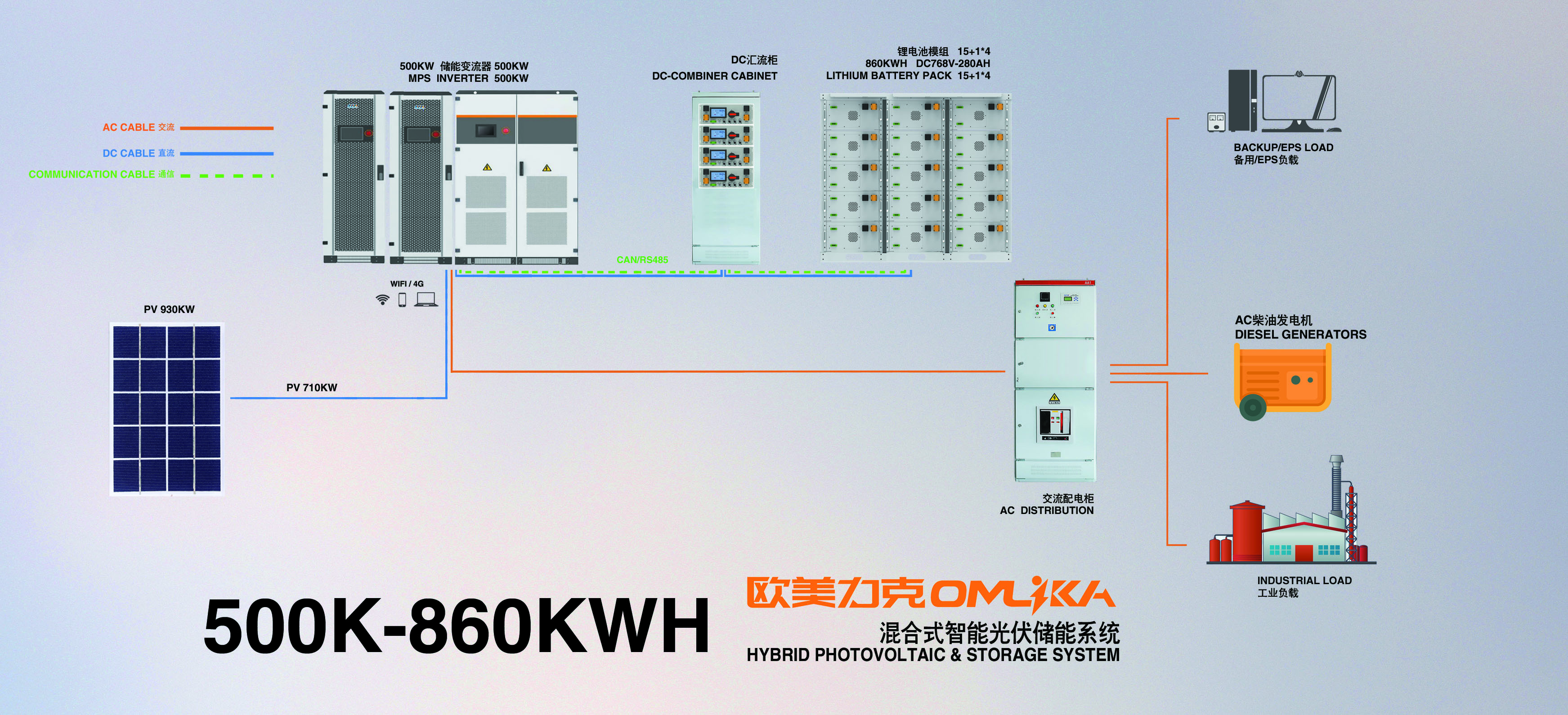

The system stores and manages electrical energy efficiently. From charging with grid or renewable power to intelligent dispatch, the integrated controls ensure optimal performance for daily commercial and industrial cycles.
AC power is converted to DC, charging the LFP battery system efficiently during off-peak hours or from onsite solar.
1000kWh of energy is securely stored. The liquid cooling system maintains ideal temperature for longevity and safety.
The EMS and BMS work in tandem to optimize system performance, safety, and economic dispatch based on load and tariff.
Stored DC power is converted to AC and supplied at up to 500kW to shave peak demand or power critical loads.
Reduce high electricity demand charges for factories, shopping malls, and office buildings by discharging during peak periods.
Increase self-consumption of rooftop solar, store excess generation, and provide a more predictable power profile.
Ensure power reliability for campuses, data centers, and industrial facilities, providing backup during grid outages.
Power irrigation, greenhouses, and refrigeration units, stabilizing operations and reducing energy costs.
Buffer the grid demand for electric bus depots, logistics centers, and public charging hubs.
Participate in grid ancillary services markets, providing fast-response frequency regulation where applicable.
Complete technical parameters for the 1000kWh / 500kW liquid-cooled energy storage container system.
| Specifications | |
|---|---|
| DC Side | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh / 1P48S |
| System Configuration | 1000 kWh / 4P240S |
| Rated DC Voltage | 768 V |
| DC Voltage Range | 672~864 V |
| Max. Charge/Discharge Rate | 0.5 P (500 kW) |
| Max. Depth of Discharge | 100% (25±2℃) |
| AC Side | |
| Rated Output Power | 500 kW |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±10% (Adjustable) |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/-1~+1 |
| THDi | ≤3% |
| DC Current Injection | <0.5% of rated output current |
| General | |
| Max. Round Trip Efficiency | ≥90% |
| Cycle Life | ≥8,000 cycles |
| Communication | CAN, Modbus TCP/IP, Ethernet |
| Fire Suppression System | Aerosol system+Water spray system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Noise | ≤75 dB |
| Altitude | ≤4500m (Derating above 2000m) |
| Dimensions (LxWxH) | 6,058 * 2,438 * 2,591mm (20 ft Container) |
| Weight | Approx. 14,000 kg |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
| Grid Code Compliance | IEC/IEEE 1547, VDE-AR-N 4105, G99/G100, CEI 0-21, etc. (Market specific) |
Our state-of-the-art manufacturing facility with advanced production lines and strict quality control processes, ensuring reliable production of 1000kWh energy storage systems.
Our 1000kWh energy storage containers have been successfully deployed in various commercial and industrial projects worldwide.
For detailed quotations, system customization, or technical datasheets for our 1000kWh/500kW commercial & industrial solution, please contact our sales team.
