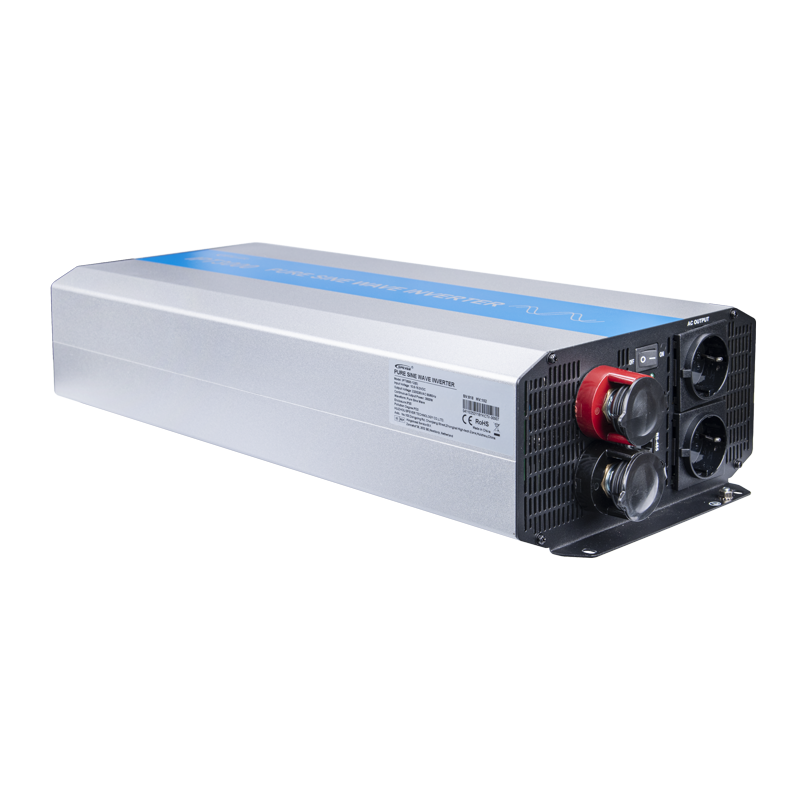

IPT2000-11 (110/120VAC) 2000W Pure Sine Wave Inverter

IPT2000-11 (110/120VAC) 2000W Pure Sine Wave Inverter

Technical Parameters
Continuous   Output Power	Surge   Power	Power-on   Surge Current
2,000W@35℃@Rated   input voltage	4,000W@5S	<   100A
Output   Voltage	Output   Frequency	Output   Wave
220VAC   (±3%); 230VAC (-6%–+3%); 240VAC (-9%–+3%)	50/60Hz   ± 0.2%	Pure   Sine Wave
Load   Power Factor	Rated   Input Voltage	Input   Voltage Range
0.2–1   (Load power ≤ Continuous   output power)	12VDC	10.8–16.0VDC
Rated   Output Efficiency	Maximum   Output Efficiency	Standby   Current
>   88.0%	>   94.0% (30% loads)	<   0.2A
No-Load   Current	RS485   Port	Output   Distortion THD
<   1.2A	5VDC/200mA	≤ 3% (Resistive load)
Mechanical   Parameters
Input   Terminal	Dimension   (L × W × H)	Mounting   Size (L × W)
M10	420mm ×   228mm × 118mm	395mm ×   145mm
Mounting   Hole Size	Net   Weight
Φ6mm	7.0kg
Environment   Parameters
Working   Temperature	Storage   Temperature	Relative   Humidity
-20℃ to   +60℃ (Refer to the Derating Curve)	-35 ℃ to   +70 ℃	≤ 95% (N.C.)
Enclosure	Altitude
IP20	<   5,000m (> 1,000 meters derating)
Certification
Safety
EN/IEC62109-1,   UL458 (Products with 12/24V input voltage support), CSA C22.2#107.1
EMC(Electromagnetic   compatibility)
EN61000-6-2/EN61000-6-4,   FCC 47 CFR Part 15, Subpart A
RoHS
IEC62321-3-1

Highlight

*Pure sine wave output

*Input to output electrical isolation

*Output power factor up to 1

*Input Protection: Low-voltage

*Over-voltage：Output Protection: Overload, Short circuit Overheating

*RS485 com. port to realize remote monitoring

*External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption

*Diversified AC output sockets

*EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved

Application Scenarios for a 1500W Pure Sine Wave Off-Grid Inverter

Here are the primary application scenarios where a 1500W inverter excels:

Recreational Vehicles (RVs) and Camper Vans

• Appliance Powering: It can easily run medium-to-high power appliances such as microwaves, coffee makers, and small refrigerators.
• Entertainment: Provides clean power for flat-screen TVs, sound systems, and gaming consoles without interference.
• Comfort: Capable of powering small air conditioners or electric heaters for short durations, depending on the battery capacity.

Outdoor Adventures and Tailgating

• Camping: Powers electric grills, portable induction cooktops, and projectors for outdoor movie nights.
• Tailgating: Runs blenders for drinks, electric griddles, and charges camera equipment or drones.
• Tools: Can operate power tools like drills, saws, or small air compressors for remote job sites.

Home Emergency Backup Power

• Critical Loads: Keeps Wi-Fi routers, modems, and laptops running to maintain communication and internet access.
• Lighting: Powers LED lighting systems throughout the house.
• Medical Devices: The "pure sine wave" output is crucial for sensitive medical equipment like CPAP machines, ensuring they function safely and effectively.
• Refrigeration: Prevents food spoilage by keeping refrigerators and freezers running.

Off-Grid Cabins and Tiny Homes

• Daily Electronics: Charges smartphones, tablets, and laptops.
• Office Equipment: Powers printers, scanners, and monitors for those working remotely from a cabin.
• Kitchen Gadgets: Handles blenders, toasters, and food processors that require stable AC power.

 Trucking and Commercial Use

• Cab Comfort: Powers heated blankets, small microwaves, and coffee makers during rest stops.
• Device Charging: Charges multiple electronic devices simultaneously via AC outlets and USB ports (if equipped).

Important Consideration: Surge Power
