All-in-One Solution for Small to Medium Commercial & Industrial Applications

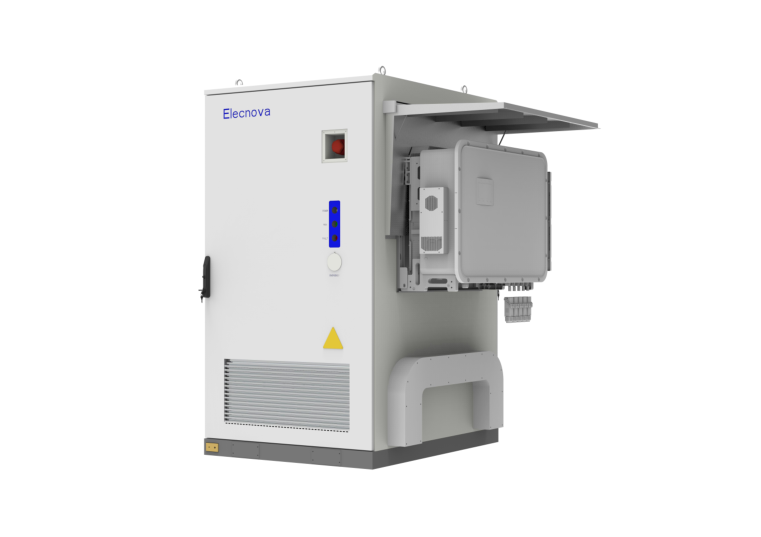

The 50kW/100kWh hybrid energy storage cabinet is a compact, efficient, and all-in-one solution designed for small to medium commercial buildings, retail stores, and light industrial facilities. It integrates a 100kWh LFP battery with PV input capability and 50kW grid-tie output, offering an ideal balance of performance and footprint for cost-effective energy management.
This system is engineered to maximize solar self-consumption, provide reliable backup power, and significantly reduce electricity bills through intelligent peak shaving. Its modular design and robust construction ensure easy installation and reliable operation in diverse environments.
100kWh of energy storage paired with 50kW of power, perfectly sized for daily cycling and demand charge management in small to medium facilities.
All critical components are pre-integrated into a single cabinet, minimizing footprint and simplifying installation.
Equipped with MPPT solar charge controllers, ready to connect to rooftop PV systems for maximum renewable energy utilization.
Reduces peak demand charges and increases solar self-consumption, delivering a fast return on investment.
The system intelligently manages energy flow to optimize costs and reliability. It stores inexpensive or solar energy and dispatches it when needed most.
During off-peak hours or sunny periods, the system charges the 100kWh battery from the grid or solar PV.
Energy is stored safely in LFP battery cells. The built-in BMS ensures optimal health and longevity.
The system's controller continuously monitors energy prices, load demand, and battery state to make optimal dispatch decisions.
When electricity rates are high or during a grid outage, the system discharges up to 50kW to power loads, saving money and ensuring continuity.
Ideal for retail stores, restaurants, and small offices to cut high demand charges by using stored power during expensive peak periods.
Maximize the value of rooftop solar installations on warehouses, supermarkets, or schools by storing excess daytime generation for evening use.
Provide uninterrupted power for essential equipment in clinics, telecom shelters, or small data centers during grid failures.
Power irrigation pumps, greenhouses, or off-grid facilities, reducing diesel fuel consumption and operating costs.
Support one or two DC fast chargers for electric vehicles without needing costly grid service upgrades.
Charge with low-cost night-time electricity and discharge during the day to avoid high daytime tariffs.
Complete technical parameters for the 50kW / 100kWh hybrid energy storage cabinet system.
| Specifications | |
|---|---|
| Battery Cabinet | |
| Cell Type | LFP / 280 Ah |
| Pack Configuration | ~100.4 kWh / 1P112S |
| System Configuration | ~100.4 kWh / 1P112S |
| Rated DC Voltage | 358.4 V |
| DC Voltage Range | 280~408.8 V |
| Max. Charge/Discharge Rate | 0.5P |
| Max. Depth of Discharge | 100% (25±2℃) |
| Cycle Life | ≥6,000 cycles (@80% DoD) |
| PV Input | |
| Max. Input Power | 60 kW |
| PV Voltage Range | 120~500V |
| MPPT Channels | 2 |
| Max. Input Current (per MPPT) | 30A |
| AC Side | |
| Rated Output Power | 50 kW |
| Rated AC Voltage | 400 V (3-Phase) |
| AC Voltage Range | ±10% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99 |
| THDi | ≤3% |
| DC Current Injection | <0.5% of rated output current |
| General | |
| Max. Round Trip Efficiency | ≥90% |
| Communication | CAN, Modbus TCP/IP |
| Fire Suppression | Aerosol |
| Ingress Rating | IP54 |
| Cooling | Forced air cooling |
| Operating Temperature | -10℃~50℃ (Derating after 40℃) |
| Anticorrosion Rating | C4 |
| Humidity | 0~95% RH (non-condensing) |
| Altitude | ≤2000m (Derating above 1000m) |
| Dimensions (W*D*H) | ~800 * ~600 * ~1800mm (Cabinet) |
| Weight | Approx. 2,000 kg |
| Safety/EMC | IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
| Grid Code Compliance | VDE-AR-N 4105, G99, EN50549 (Market specific) |

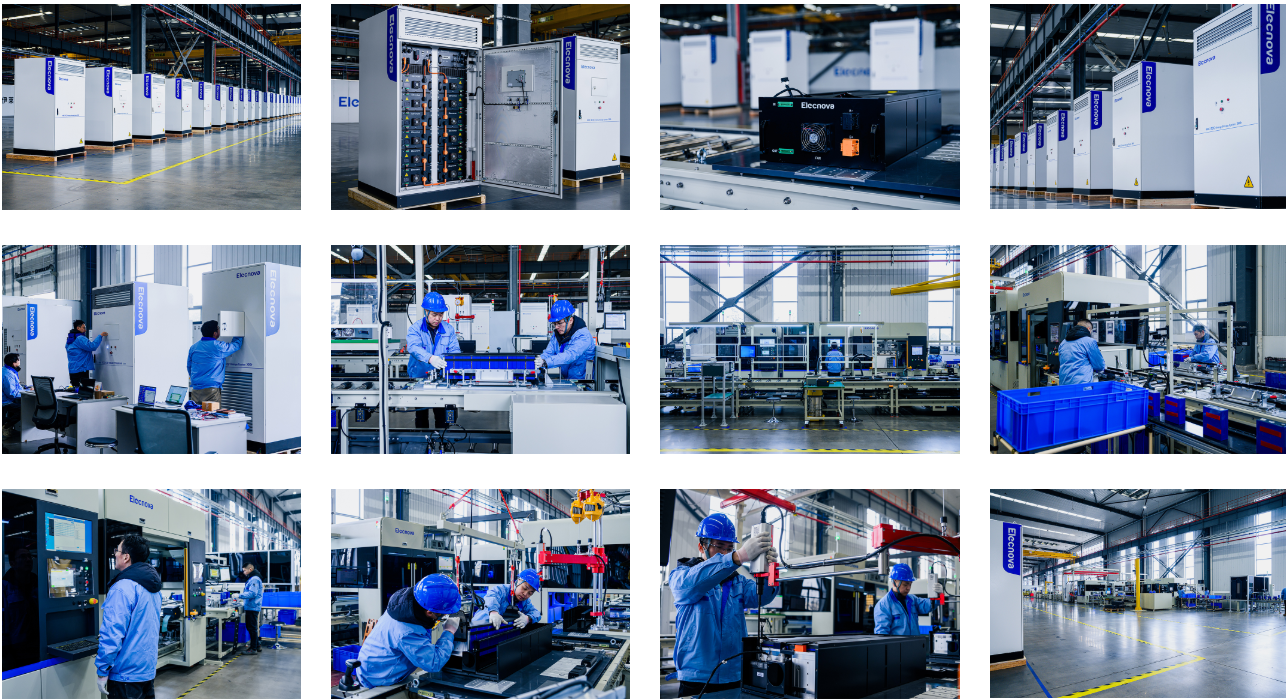

Our state-of-the-art manufacturing facility with advanced production lines and strict quality control processes.

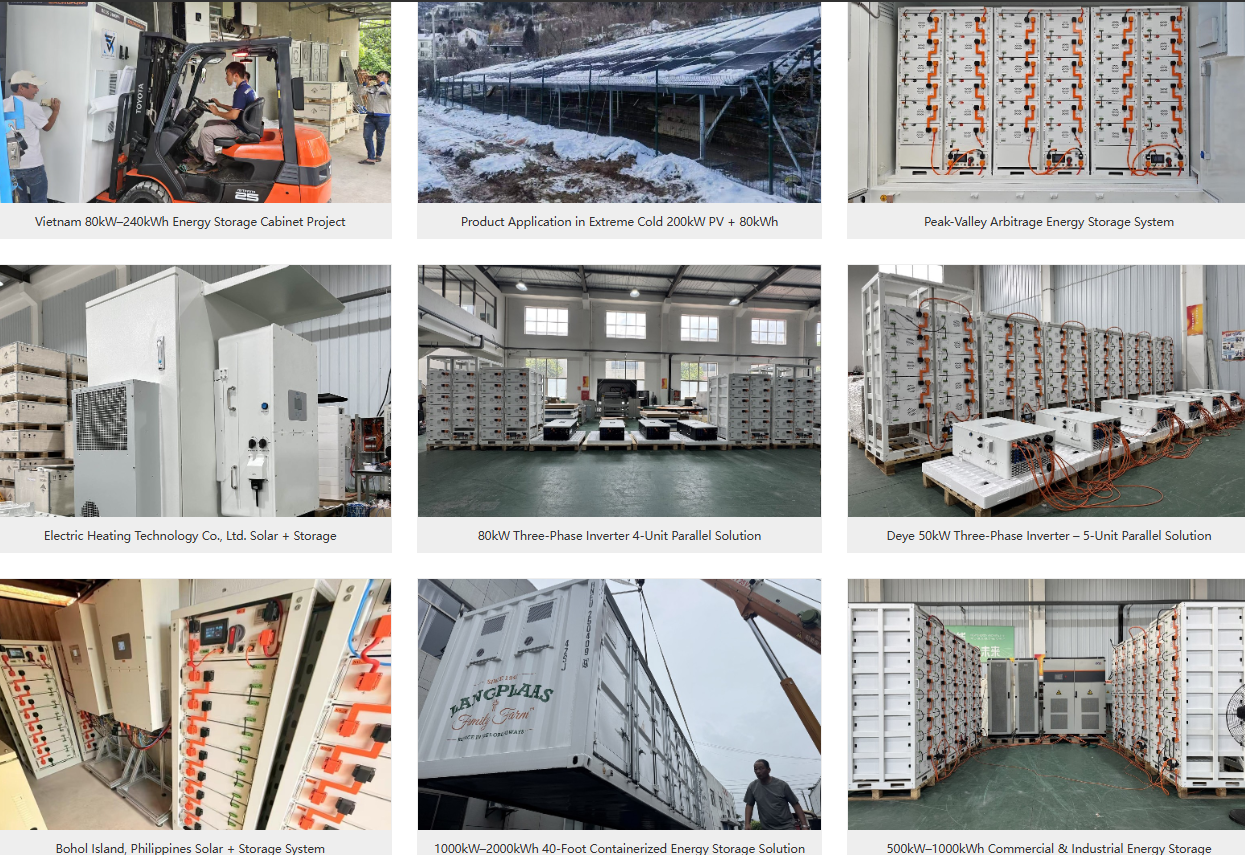

Our energy storage cabinets have been successfully deployed in various projects worldwide.
For detailed quotations, system customization, or technical datasheets for our 50kW/100kWh hybrid energy storage cabinet, please contact our sales team.
