Unlock Efficiency in Your Energy Usage with Our Advanced Compact ESS Solution
Unlock unparalleled efficiency in your energy usage with our state-of-the-art 50kWh Compact Hybrid Energy Storage System. Designed to seamlessly integrate renewable energy sources, this advanced solution ensures reliable power availability while minimizing energy costs for small commercial establishments, offices, and large residential applications.
This compact system represents the ideal entry point into smart energy management, providing the core benefits of load shifting, solar self-consumption, and backup power in a footprint suitable for space-constrained installations.
Maximize the use of solar and other renewable energy sources, significantly reducing dependency on the grid and fossil fuels.
Start with a 50kWh unit and easily expand capacity in modular steps to meet growing energy demands over time.
Designed with communication protocols to support future smart grid technologies, ensuring long-term compatibility and value.
Lower your carbon footprint by storing clean energy and reducing peak grid consumption, contributing to a more sustainable future.

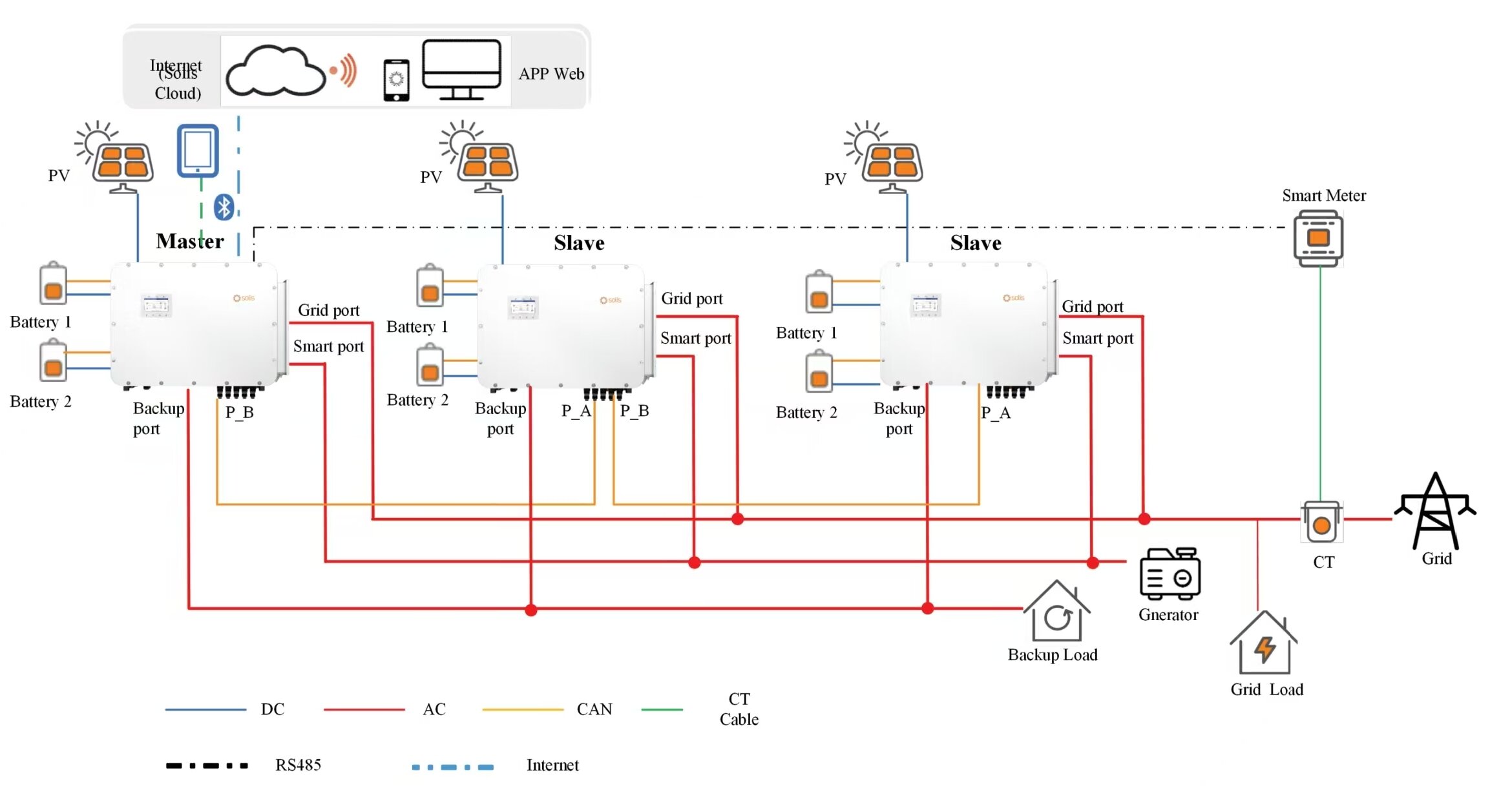

The 50kWh system intelligently manages the flow of electricity between solar generation, the battery, the grid, and your building's loads to optimize self-consumption, savings, and reliability.
Solar panels generate DC electricity, which is fed into the system. The inverter also draws AC power from the grid when needed for charging.
Excess solar or low-cost grid electricity is converted and stored in the high-safety 50kWh LiFePO4 battery bank for later use.
The system's controller continuously analyzes energy production, consumption patterns, and tariff schedules to make optimal economic decisions.
Stored energy is supplied to power your loads during high-cost periods or a grid outage, ensuring continuity and savings.
Reduce electricity bills by automatically using stored energy during expensive peak tariff hours and charging during low-cost off-peak periods.
Seamlessly pair with rooftop solar PV systems to maximize self-consumption of solar energy, storing excess daytime generation for use at night.
Provide reliable, uninterrupted power to critical circuits (lighting, servers, refrigeration) during grid outages, ensuring business continuity.
Smooth out the intermittent output from solar or small wind turbines, making renewable energy more reliable and grid-friendly.
Complete technical parameters for the 50kWh (51.2kWh) hybrid energy storage system.
| Specifications | |
|---|---|
| Battery System | |
| Battery Type | LiFePO4 |
| Battery Pack | 51.2V-100Ah |
| System Configuration (Est.) | 10P16S (Example: 10 packs in parallel, each 16S) |
| Nominal System Voltage | 512 V DC |
| Nominal Capacity | 51.2 kWh (51 kWh) |
| Max. Charge/Discharge Current | 100 A |
| Rec. Charge/Discharge Current | 50 A |
| Cycle Life | >6000 cycles (@0.5C, 80% DoD) |
| Design Life | >10 years |
| Cooling Method | Air-cooled |
| Communication | RS485 / CAN |
| Working Temperature | Charge: 0℃~50℃; Discharge: -10℃~50℃ |
| Certification | UN38.3, MSDS, ROHS |
| Fire Suppression | Aerosol |
| Power Conversion System (PCS) / AC Side | |
| Rated Power | 50 kW |
| Overload Capacity | 110% |
| Rated AC Voltage | 400 V (3-Phase) |
| Rated Grid Frequency | 50 Hz / 60 Hz |
| Communication | Ethernet, Modbus TCP/IP |
| Compatible Inverter Brands | Deye, Solis, Megarevo, Others |
| General / Cabinet | |
| Cabinet Dimensions (W*D*H) | 640 * 830 * 1900 mm |
| Weight | 750 kg |
| Ingress Protection (IP) | IP54 |
| Communication (System) | Ethernet, Modbus TCP/IP |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply systems—we design the right 50kWh compact energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
Reliability: Our robust design ensures continuous operation under various conditions. We provide comprehensive support from system design to installation, commissioning, and maintenance, ensuring your system operates efficiently, reliably, and sustainably for years to come.
For detailed quotations, system customization, or technical datasheets for our 50kWh compact hybrid energy storage solution, please contact our sales team.
