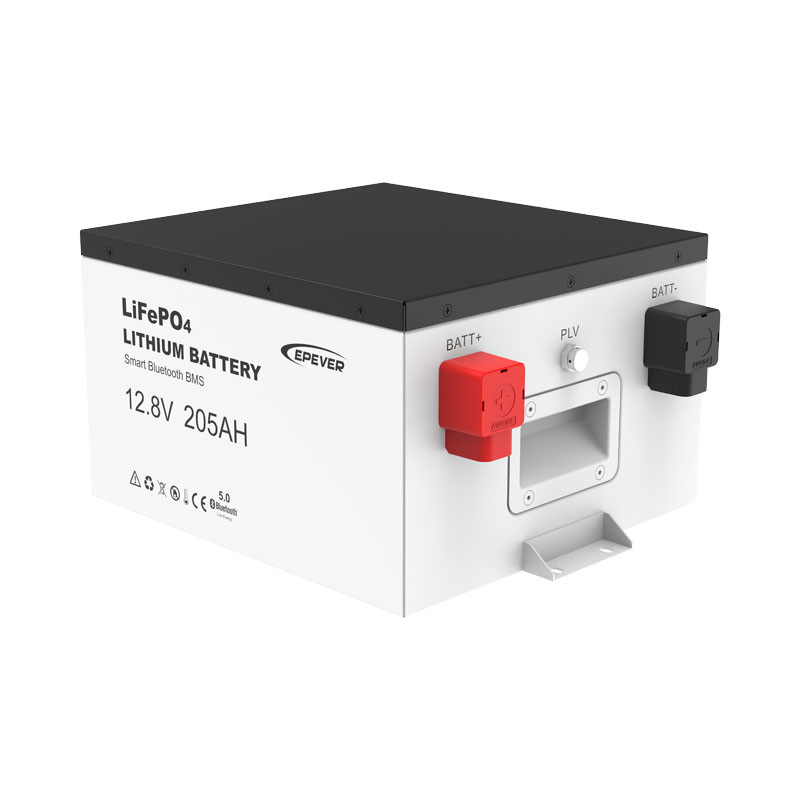

12.8v 205Ah RV Lithium Battery

Features

•A grade brand new prismatic LiFePO4 cells

•Cell balance function

•＞6000 cycles @80% DOD(25℃, 0.5C )

•Metal Case, excellent heat dissipation, more safety

•Over charge, over discharge, over temperature, low temperature, over current and short circuit protection

•Certificate：UN38.3 MSDS IEC62619 ROHS CE-RED

•Easy installation and maintenance free

•Max 4 battery packs can be connected in series/parallel

Electrical Characteristics

	Model	LiM12205C
Electrical Parameter	Battery Type	LiFePO4
	Nominal Voltage (V)	12.8
	Nominal Capacity (AH)	205
	Energy (WH)	2624
	Pack Mode	4s1p
	Charge Cut-off Voltage (V)	14.4
	Discharge Cut-off Voltage (V)	10.4
	Max.Charge Current (A)	200
	Max.Discharge Current (A)	200
	Recommend Discharge Current (A)	100
	Recommend Discharge Depth (％)	80
	Cycle Life	＞6000 cycles (25°C, 0.5C ) 80% DOD
	Function	Heating
	Communication	Bluetooth
Environmental Parameter	Charge&Discharge Temperature (℃)	Charge: 0°C~+55°C / Discharge: -20°C~+55°C
	Optimal Storage Temperature (℃)	5°C～+35°C
	Relative Humidity	40%~80%
	Ingress Protection	IP65
Mechanical Parameter	Terminal	M8
	Dimensions (LWH) (mm)	310290185(excluding terminals and mounting brackets)
	Weight (Kg)	23.3±0.5
Certificate		UN38.3 MSDS IEC62619 ROHS CE-RED
