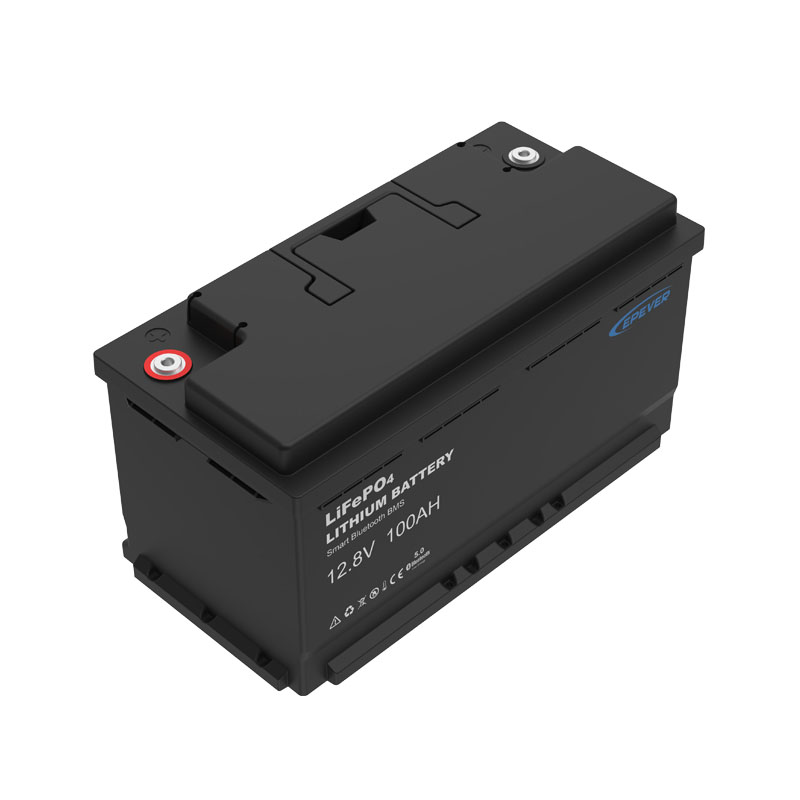

12.8V 100Ah RV Lithium battery

Features

•A grade brand new prismatic LiFePO4 cells

•Cell balance function

•＞6000 cycles @80% DOD(25℃, 0.5C )

•ABS Case, corrosion and high temperature resistance

•Over charge, over discharge, over temperature, low temperature, over current and short circuit protection

•Certificate：UN38.3 MSDS IEC62619 ROHS CE-RED

•Easy installation and maintenance free

•Max 4 battery packs can be connected in series/parallel

Electrical Characteristics

	Model	LiA12100G
Electrical Parameter	Battery Type	LiFePO4
	Nominal Voltage (V)	12.8
	Nominal Capacity (AH)	100
	Energy (WH)	1280
	Pack Mode	4S1P
	Charge Cut-off Voltage (V)	14.4
	Discharge Cut-off Voltage (V)	10.4
	Max.Charge Current (A)	100
	Max.Discharge Current (A)	150
	Recommend Discharge Current (A)	50
	Recommend Discharge Depth (％)	80
	Cycle Life	＞6000 cycles (25°C, 0.5C ) 80% DOD
	Function	Bluetooth、Heating
Environmental Parameter	Charge&Discharge Temperature(°C)	Charge: 0°C~+50°C / Discharge: -20°C~+50°C
	Optimal Storage Temperature(°C)	5°C～+35°C
	Relative Humidity	40%~80%
	Ingress Protection	IP65
Mechanical Parameter	Terminal	M8
	Dimensions (LWH) (mm)	354176187
	Weight (Kg)	11.1±0.5
Certificate	UN38.3 MSDS IEC62619 ROHS CE-RED
