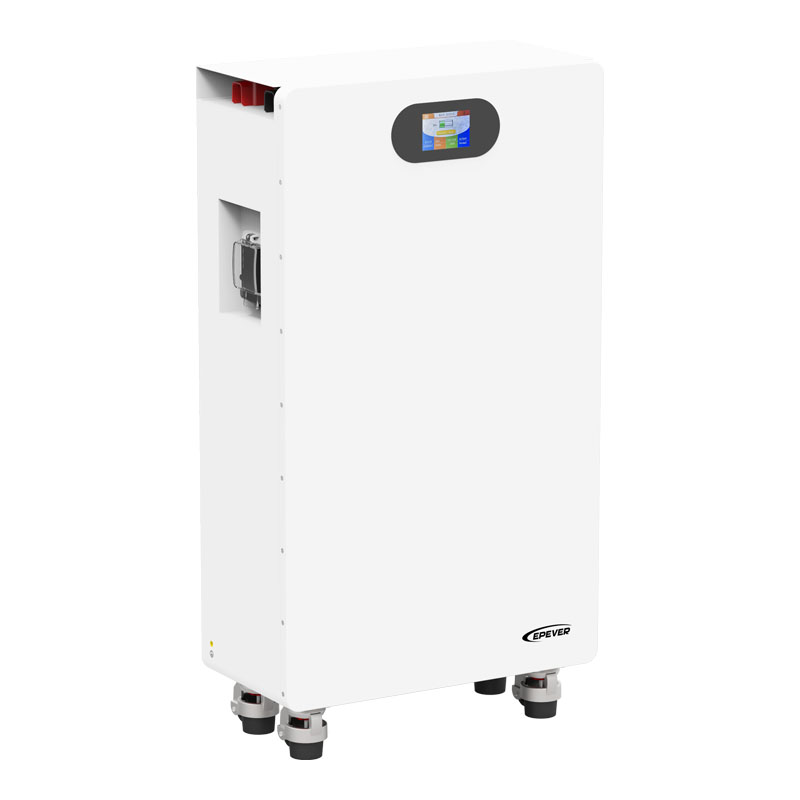

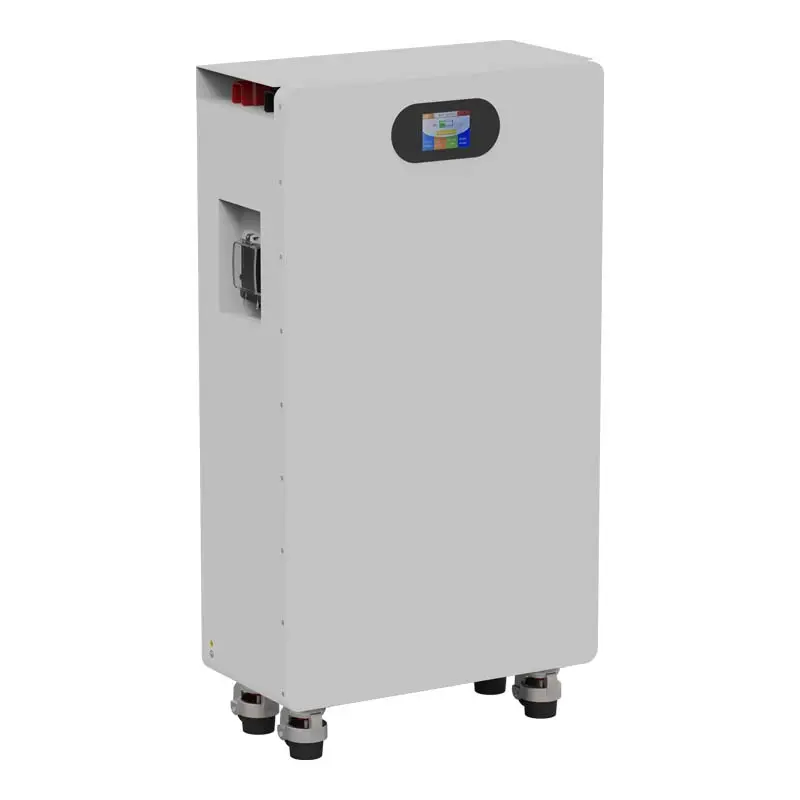

16kwh 51.2V floor mounted Lithium Battery

Features

• A grade brand new prismatic LiFePO4 cells

• Cell balance function & Built-in fire suppression module

• ＞8000 cycles @80% DOD(25℃, 0.5C )

• Metal Case, excellent heat dissipation, more safety

• Over charge, over discharge, over temperature, low temperature, over current and short circuit protection

• Certificate: UN38.3, MSDS IEC62619

• LCD display screen to monitor cell SOC, voltage, temperature and alarm status

• Max 8 battery packs can be connected in parallel

Electrical Characteristics

Model	EF51314A
Battery Type	LiFePO4
Nominal Voltage (V)	51.2
Nominal Capacity (AH)	314
Energy (WH)	16076
Pack Mode	16S1P
Charge Cut-off Voltage (V)	57.6
Discharge Cut-off Voltage (V)	41.6
Max.Charge Current (A)	150
Max.Discharge Current (A)	200
Recommend Discharge Current (A)	100
Recommend Discharge Depth (％)	80
Cycle Life	＞8000 cycles (25°C, 0.5C ) 80% DOD
Function	Breaker
Communication	RS485 RS232 CAN
Display	LCD
Mounting	Floor-mounted
Charge&Discharge Temperature (℃)	Charge: 0°C~+50°C / Discharge: -20°C~+50°C
Optimal Storage Temperature (℃)	5°C～+35°C
Relative Humidity	40%~80%
Ingress Protection	IP65
Terminal	Quick-plug
Dimensions (LWH) (mm)	500245850
Weight (Kg)	122.5±0.5
UN38.3 MSDS IEC62619
