Compact LiFePO4 Battery with IP65 Rating for Residential & Light Commercial Energy Storage

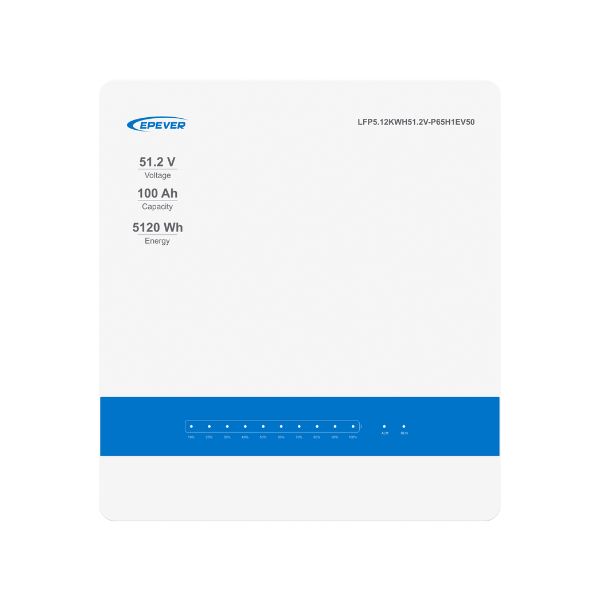

The 5.12kWh 51.2V Wall Mounted Lithium Battery is a space-saving, high-performance energy storage solution designed for residential and light commercial applications. Featuring LiFePO4 chemistry, IP65 protection rating, and a compact wall-mounted design, this battery delivers reliable power storage with excellent safety and efficiency for homes, small businesses, and commercial spaces.
With its 5.12kWh capacity and 100Ah rating, this wall-mounted battery provides substantial energy storage for daily backup power and load management. The integrated LED display offers clear status indication, while support for up to 8 units in parallel allows users to scale their energy storage capacity from 5.12kWh to 40.96kWh. The comprehensive protection system, including over 5000 cycles at 80% depth of discharge and wide temperature range operation, ensures safe and reliable performance in various residential and commercial environments.
Compact wall-mounted installation saves valuable floor space, making it ideal for residential garages, utility rooms, and commercial spaces with limited floor area.
Exceeds 5000 cycles at 80% depth of discharge (25°C, 0.5C), ensuring long-term reliability and maximum return on investment for daily energy storage applications.
Dust-tight and protected against water jets from any direction, making it suitable for installation in various indoor environments including garages and utility areas.
Operates in temperatures from -20°C to +60°C for discharge and 0°C to +55°C for charging, ensuring reliable performance in diverse climate conditions.
The 5.12kWh wall-mounted battery system provides efficient, space-saving energy storage for residential and light commercial applications, with modular expansion capability and comprehensive safety features.
Designed for convenient wall mounting in residential garages, utility rooms, and commercial spaces, saving valuable floor space while maintaining accessibility.
5.12kWh capacity with 100Ah rating provides substantial energy reserves for daily residential backup, small business operations, and commercial applications.
IP65 rating ensures dust-tight operation and protection against water jets, making it suitable for various indoor installation environments.
Supports up to 8 units in parallel, allowing capacity expansion from 5.12kWh to 40.96kWh for growing residential and commercial energy requirements.
Provide reliable backup power for homes during grid outages, ensuring continuous operation of essential appliances, lighting, and security systems.
Store excess solar energy from residential solar installations for use during evening hours or power outages, maximizing self-consumption and reducing electricity bills.
Support small businesses, retail stores, and offices with reliable backup power to maintain operations during grid interruptions and reduce downtime costs.
Provide backup power for telecommunications equipment, network infrastructure, and communication systems to ensure uninterrupted service.
Provide buffer storage for home EV charging stations, reducing peak demand on the household electrical system and optimizing charging efficiency.
Support light commercial facilities, small offices, retail spaces, and service businesses with reliable energy storage for critical operations.
Complete technical parameters for the 5.12kWh 51.2V Wall Mounted Lithium Battery with IP65 protection rating.
| Specifications | |
|---|---|
| Model Information | |
| Model | LFP5.12KWH51.2V-P65H1EV50 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Electrical Characteristics | |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Energy Capacity | 5120 Wh (5.12 kWh) |
| Continuous Discharge Current | 50 A |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 100 A |
| Peak Discharge Current | 120 A |
| Recommended Discharge Current | 50 A |
| Recommended Discharge Depth | 80% |
| Charge Cut-off Voltage | 57.6 V |
| Discharge Cut-off Voltage | 41.6 V |
| Open Circuit Voltage | 50.88 - 53.6 V |
| Physical Characteristics | |
| Dimensions (L×W×H) | 510 × 180 × 560 mm |
| Weight | 49.8 ± 0.5 kg |
| Mounting Type | Wall-mounted |
| Terminal Type | Quick plug |
| IP Rating | IP65 |
| Environmental Characteristics | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +60°C |
| Optimal Storage Temperature | 5°C ~ +35°C |
| Relative Humidity | 40% ~ 80% |
| Performance & Life | |
| Cycle Life | >5000 cycles (25°C, 0.5C, 80% DOD) |
| Parallel Configuration | Max. 8 units in parallel |
| Communication & Display | |
| Communication Interface | RS485, CAN, RS232 |
| Display | LED Display |
| Certifications | |
| Certifications | UN38.3, MSDS, IEC62619, ROSH |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply batteries—we design the right energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
Space Efficiency & Reliability: Our 5.12kWh 51.2V Wall Mounted Lithium Battery features a compact design that saves valuable floor space while providing reliable energy storage for residential and light commercial applications. With over 5000 cycles at 80% depth of discharge and IP65 protection rating, our wall-mounted design offers the perfect balance of performance and space efficiency. The integrated LED display provides clear status indication, while support for up to 8 units in parallel allows flexible capacity expansion. We provide complete support from system design to installation, ensuring your energy storage solution operates efficiently and reliably for years to come.
For detailed quotations, system customization, or technical datasheets for our 5.12kWh 51.2V Wall Mounted Lithium Battery, please contact our sales team.
