Features
● A grade brand new prismatic LiFePO4 cells
● > 6000 cycles @80% DOD(25°C, 0.5C)
● Over charge, over discharge, over temperature, low temperature,over current and short circuit protection
● Easy installation and maintenance free
● Cell balance function
● Metal Case, excellent heat dissipation, more safety
● Certificate: UN38.3, MSDS IEC62619
● Max 2 battery packs in series/Max 4 battery packs in parallel
Electrical Characteristics

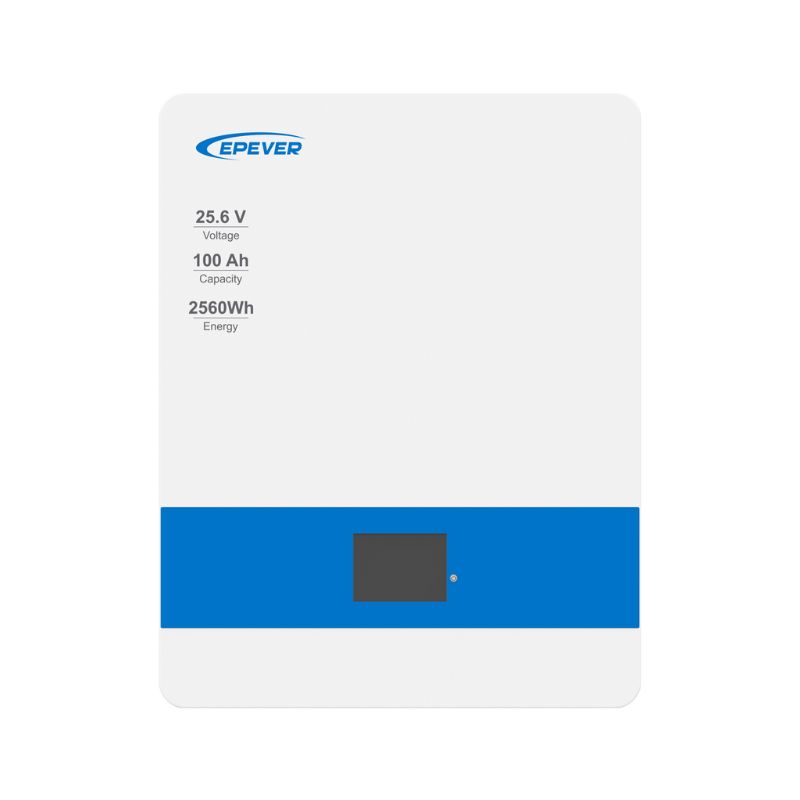

| Model | LFP2.56KWH25.6V-P65H2 | |
| Electrical Parameter | Battery Type | LiFePO4 |
| Nominal Voltage (V) | 25.6 | |
| Nominal Capacity (AH) | 100 | |
| Energy(WH) | 2560 | |
| Pack Mode | 8S1P | |
| Continuous Discharge Current (A) | 75 | |
| Charge Cut-off Voltage (V) | 28.8 | |
| Discharge Cut-off Voltage (V) | 20.8 | |
| Max.Charge Current (A) | 75 | |
| Max.Discharge Current (A) | 150 | |
| Peak Discharge Current (A) | 180 | |
| Recommend Discharge Current (A) | 75 | |
| Recommend Discharge Depth (%) | 80 | |
| Cycle Life | >6000 cycles(25*C, 0.5C ) 80% DOD | |
| Function | ||
| Communication | RS485 CAN | |
| Display | LCD | |
| Mounting | Wall-mounted | |
| Environment Parameter | Charge&Discharge Temperature(℃) | Charge: 0°C~+55C/Discharge:-20°C-+60C |
| Optimal Storage Temperature (℃) | 5℃~+35℃ | |
| Relative Humidity | 40%-80% | |
| Ingress Protection | IP65 | |
| Mechanical Parameter | Terminal | M8 |
| Dimensions(L*W*H) (mm) | 360*180*460 | |
| Weight (Kg) | 27.4±0.5 | |
| Certificate | UN38.3 MSDS IEC62619 | |
