High-Capacity LiFePO4 Battery with 314Ah Rating for Commercial & Industrial Energy Storage

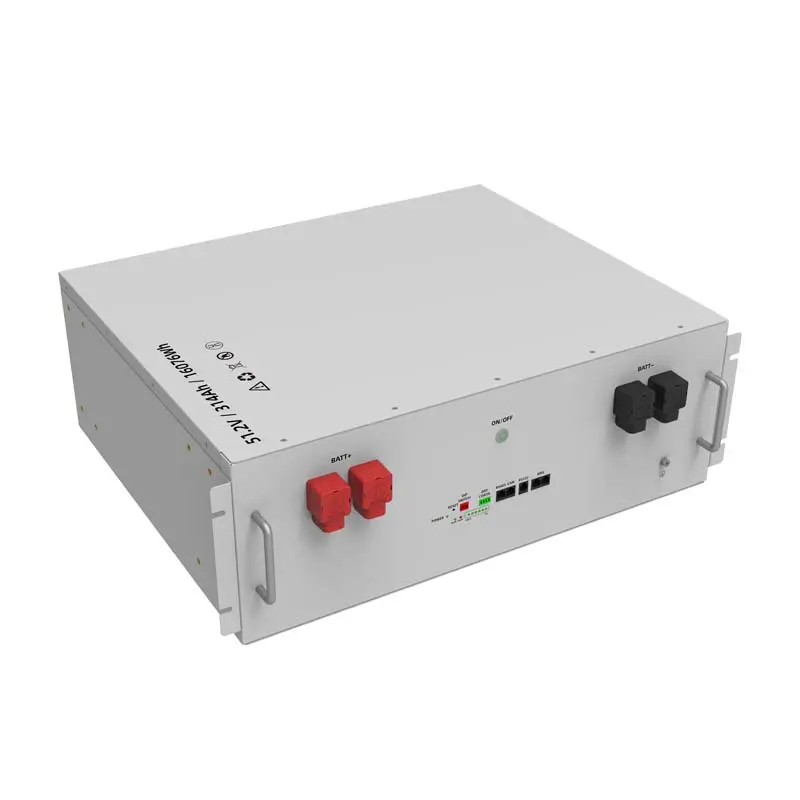

The 16kWh 51.2V Rack Mounted Lithium Battery is a high-capacity energy storage solution designed for commercial and industrial applications. Featuring A-grade LiFePO4 prismatic cells, 314Ah capacity, and a standard 19-inch rack-mounted design, this battery delivers reliable power storage with exceptional cycle life and scalability for demanding commercial and industrial environments.
With its 16kWh capacity and 314Ah rating, this rack-mounted battery provides substantial energy storage for commercial backup power, industrial applications, and large-scale energy management systems. The integrated LED display offers clear status indication, while support for up to 8 units in parallel allows users to scale their energy storage capacity from 16kWh to 128kWh. The comprehensive protection system, including over 8000 cycles at 80% depth of discharge and wide temperature range operation, ensures safe and reliable performance in various commercial and industrial settings.
16kWh capacity with 314Ah rating provides substantial energy reserves for commercial backup, industrial operations, and large-scale energy management applications.
Exceeds 8000 cycles at 80% depth of discharge (25°C, 0.5C), ensuring long-term reliability and maximum return on investment for demanding commercial applications.
Standard 19-inch rack-mounted design for easy integration into commercial server racks, industrial control cabinets, and data center environments.
Supports up to 8 units in parallel, allowing capacity expansion from 16kWh to 128kWh for growing commercial and industrial energy requirements.
The 16kWh rack-mounted battery system provides high-capacity, scalable energy storage for commercial and industrial applications, with modular expansion capability and comprehensive safety features designed for demanding environments.
Designed for standard 19-inch rack mounting in commercial server rooms, industrial control cabinets, and data center environments for easy integration and maintenance.
16kWh capacity with 314Ah rating provides substantial energy reserves for commercial backup, industrial operations, and large-scale energy management systems.
Comprehensive protection system including over charge, over discharge, over temperature, low temperature, over current and short circuit protection for maximum operational safety.
Supports up to 8 units in parallel, allowing capacity expansion from 16kWh to 128kWh for growing commercial and industrial energy requirements.
Provide reliable backup power for commercial buildings, offices, retail centers, and industrial facilities during grid outages, ensuring business continuity.
Store excess solar energy from commercial and industrial solar installations for use during peak demand periods or power outages, reducing electricity costs.
Support data centers and server rooms with reliable backup power to maintain critical IT infrastructure and prevent data loss during power interruptions.
Provide backup power for telecommunications towers, network infrastructure, and communication systems to ensure uninterrupted service.
Provide backup power for industrial machinery, manufacturing equipment, and process control systems to prevent production downtime.
Support large commercial facilities, shopping malls, hotels, and office complexes with reliable energy storage for critical operations and peak shaving.
Complete technical parameters for the 16kWh 51.2V Rack Mounted Lithium Battery with 314Ah capacity and industrial-grade design.
| Specifications | |
|---|---|
| Model Information | |
| Model | LR51314E |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Pack Mode | 16S1P |
| Electrical Characteristics | |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 314 Ah |
| Energy Capacity | 16076 Wh (16.076 kWh) |
| Continuous Discharge Current | 150 A |
| Max. Charge Current | 10 A |
| Max. Discharge Current | 200 A |
| Recommended Discharge Current | 150 A |
| Recommended Discharge Depth | 80% |
| Charge Cut-off Voltage | 57.6 V |
| Discharge Cut-off Voltage | 41.6 V |
| Physical Characteristics | |
| Dimensions (L×W×H) | 700 × 580 × 248 mm |
| Weight | 124.5 ± 0.5 kg |
| Mounting Type | 19-inch Rack-mounted |
| Terminal Type | M8 |
| IP Rating | IP20 |
| Environmental Characteristics | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +60°C |
| Optimal Storage Temperature | 5°C ~ +35°C |
| Relative Humidity | 40% ~ 80% |
| Performance & Life | |
| Cycle Life | >8000 cycles (25°C, 0.5C, 80% DOD) |
| Parallel Configuration | Max. 8 units in parallel |
| Function & Features | |
| Communication Interface | RS485, RS232, CAN |
| Display | LED Display |
| Heating Function | Optional heating function |
| Protection Features | Over charge, over discharge, over temperature, low temperature, over current and short circuit protection |
| Cell Balance | Cell balance function |
| Case Material | Metal case for excellent heat dissipation and safety |
| LED Power Consumption | Low power consumption, high brightness, long visual distance |
| Certifications | |
| Certifications | Standard industrial certifications |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply batteries—we design the right energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
High Capacity & Industrial Reliability: Our 16kWh 51.2V Rack Mounted Lithium Battery features a high-capacity design with 314Ah rating, providing substantial energy storage for commercial and industrial applications. With over 8000 cycles at 80% depth of discharge and standard 19-inch rack mounting, our industrial-grade design offers the perfect balance of performance and scalability. The integrated LED display provides clear status indication, while support for up to 8 units in parallel allows flexible capacity expansion up to 128kWh. We provide complete support from system design to installation, ensuring your energy storage solution operates efficiently and reliably in demanding commercial and industrial environments.
For detailed quotations, system customization, or technical datasheets for our 16kWh 51.2V Rack Mounted Lithium Battery, please contact our sales team.
