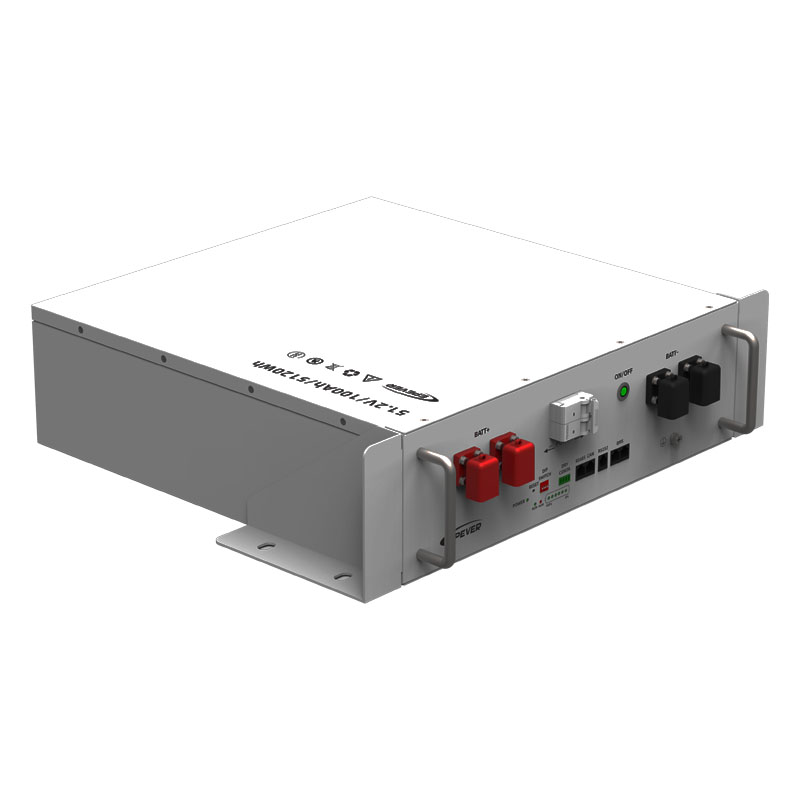

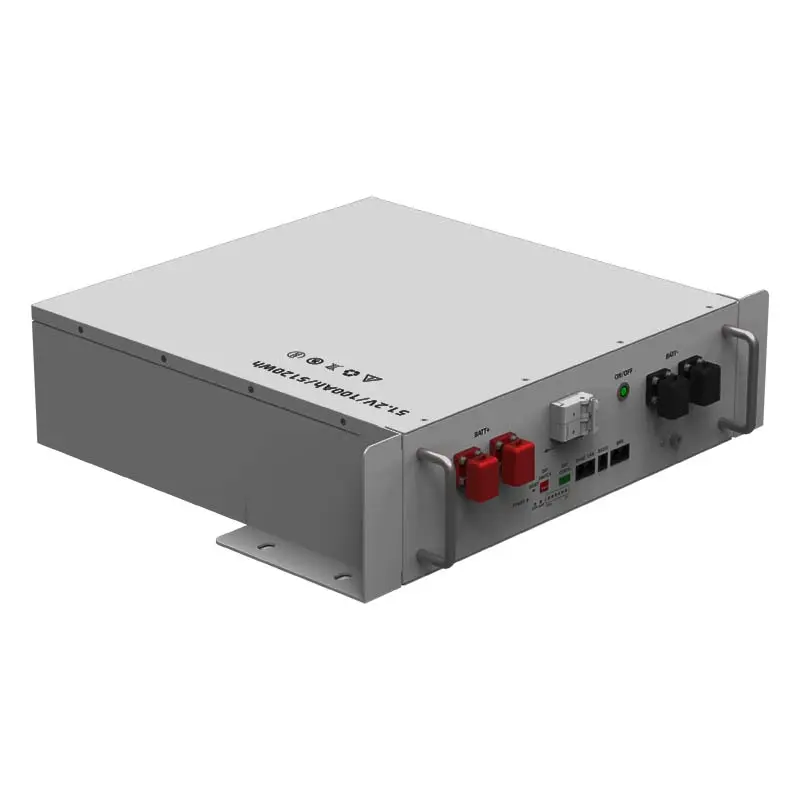

Compact LiFePO4 Battery with 100Ah Rating for Commercial & Industrial Energy Storage
The 5.12kWh 51.2V Rack Mounted Lithium Battery is a compact energy storage solution designed for commercial and industrial applications. Featuring A-grade LiFePO4 prismatic cells, 100Ah capacity, and a standard 19-inch rack-mounted design, this battery delivers reliable power storage with excellent cycle life and scalability for various commercial and industrial environments.
With its 5.12kWh capacity and 100Ah rating, this rack-mounted battery provides efficient energy storage for commercial backup power, industrial applications, and medium-scale energy management systems. The integrated LED display offers comprehensive status monitoring, while support for up to 8 units in parallel allows users to scale their energy storage capacity from 5.12kWh to 40.96kWh. The comprehensive protection system, including over 6000 cycles at 80% depth of discharge and wide temperature range operation, ensures safe and reliable performance in various commercial and industrial settings.
5.12kWh capacity with 100Ah rating provides efficient energy reserves for commercial backup, industrial operations, and medium-scale energy management applications.
Exceeds 6000 cycles at 80% depth of discharge (25°C, 0.5C), ensuring long-term reliability and maximum return on investment for demanding commercial applications.
Standard 19-inch rack-mounted design for easy integration into commercial server racks, industrial control cabinets, and data center environments.
Supports up to 8 units in parallel, allowing capacity expansion from 5.12kWh to 40.96kWh for growing commercial and industrial energy requirements.
The 5.12kWh rack-mounted battery system provides compact, scalable energy storage for commercial and industrial applications, with modular expansion capability and comprehensive safety features designed for demanding environments.
Designed for standard 19-inch rack mounting in commercial server rooms, industrial control cabinets, and data center environments for easy integration and maintenance.
5.12kWh capacity with 100Ah rating provides efficient energy reserves for commercial backup, industrial operations, and medium-scale energy management systems.
Comprehensive protection system including over charge, over discharge, over temperature, low temperature, over current and short circuit protection for maximum operational safety.
Supports up to 8 units in parallel, allowing capacity expansion from 5.12kWh to 40.96kWh for growing commercial and industrial energy requirements.
Provide reliable backup power for commercial buildings, offices, retail centers, and industrial facilities during grid outages, ensuring business continuity.
Store excess solar energy from commercial and industrial solar installations for use during peak demand periods or power outages, reducing electricity costs.
Support data centers and server rooms with reliable backup power to maintain critical IT infrastructure and prevent data loss during power interruptions.
Provide backup power for telecommunications towers, network infrastructure, and communication systems to ensure uninterrupted service.
Provide backup power for industrial machinery, manufacturing equipment, and process control systems to prevent production downtime.
Support medium commercial facilities, shopping malls, hotels, and office complexes with reliable energy storage for critical operations and peak shaving.
Complete technical parameters for the 5.12kWh 51.2V Rack Mounted Lithium Battery with 100Ah capacity and industrial-grade design.
| Specifications | |
|---|---|
| Model Information | |
| Model | LFP5.12KWH51.2V-P20R5 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Pack Mode | 16S1P |
| Electrical Characteristics | |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Energy Capacity | 5120 Wh (5.12 kWh) |
| Continuous Discharge Current | 50 A |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 100 A |
| Recommended Discharge Current | 50 A |
| Recommended Discharge Depth | 80% |
| Charge Cut-off Voltage | 57.6 V |
| Discharge Cut-off Voltage | 41.6 V |
| Physical Characteristics | |
| Dimensions (L×W×H) | 495 × 510 × 150 mm |
| Weight | 47.8 ± 0.5 kg |
| Mounting Type | 19-inch Rack-mounted |
| Terminal Type | M6 |
| IP Rating | IP20 |
| Environmental Characteristics | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +60°C |
| Optimal Storage Temperature | 5°C ~ +35°C |
| Relative Humidity | 40% ~ 80% |
| Performance & Life | |
| Cycle Life | >6000 cycles (25°C, 0.5C, 80% DOD) |
| Parallel Configuration | Max. 8 units in parallel |
| Function & Features | |
| Communication Interface | RS485, RS232, CAN |
| Display | LED Display |
| Display Features | Low power consumption, high brightness, long visual distance |
| Protection Features | Over charge, over discharge, over temperature, low temperature, over current and short circuit protection |
| Cell Balance | Cell balance function |
| Case Material | Metal case for excellent heat dissipation and safety |
| Breaker | Included |
| Certifications | |
| Certifications | UN38.3, MSDS, IEC62619 |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply batteries—we design the right energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
Compact Capacity & Industrial Reliability: Our 5.12kWh 51.2V Rack Mounted Lithium Battery features a compact design with 100Ah rating, providing efficient energy storage for commercial and industrial applications. With over 6000 cycles at 80% depth of discharge and standard 19-inch rack mounting, our industrial-grade design offers the perfect balance of performance and scalability. The integrated LED display provides comprehensive status monitoring with low power consumption, while support for up to 8 units in parallel allows flexible capacity expansion up to 40.96kWh. We provide complete support from system design to installation, ensuring your energy storage solution operates efficiently and reliably in demanding commercial and industrial environments.
For detailed quotations, system customization, or technical datasheets for our 5.12kWh 51.2V Rack Mounted Lithium Battery, please contact our sales team.
