＞6000 cycles @80%   DOD(25℃, 0.5C )

•

ABS Case, corrosion and high temperature resistance

•

Over   charge, over discharge, over temperature, low temperature, over current and   short circuit protection

•

Certificate:   UN38.3, MSDS

•

Easy   installation and maintenance free

•

Max   4 battery packs can be connected in series/parallel

Electrical   Parameter

Battery Type

LiFePO4

Nominal Voltage (V)

12.8

Nominal Capacity (AH)

205

Energy (WH)

2624

Pack Mode

4S1P

Charge Cut-off Voltage (V)

14.4

Discharge Cut-off Voltage (V)

10.4

Max.Charge Current (A)

100

Max.Discharge Current (A)

200

Recommend Discharge Current (A)

100

Recommend Discharge Depth   (％)

80

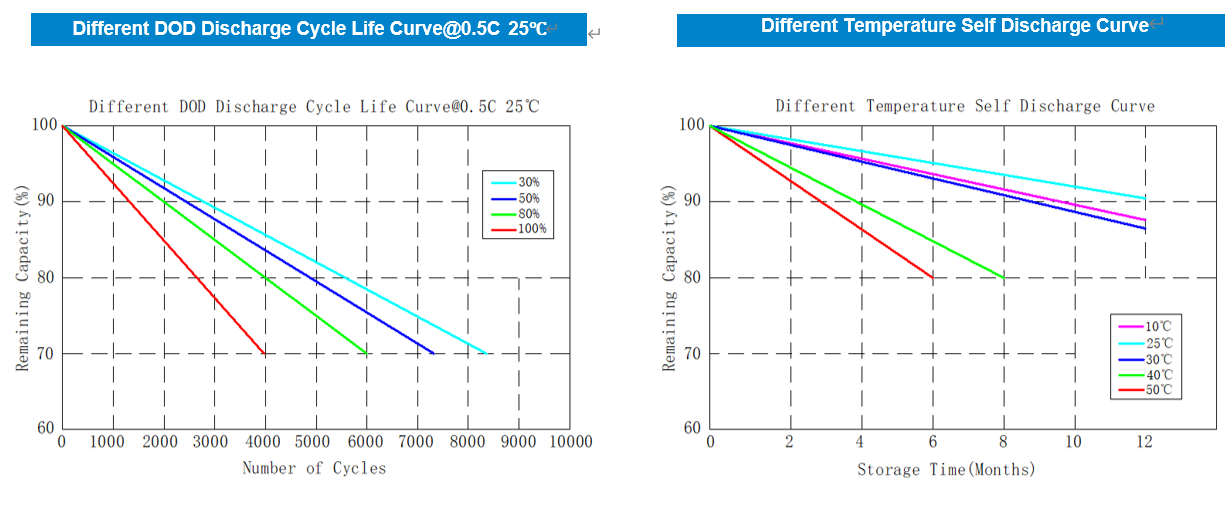

Cycle  Life

＞6000 cycles (25°C, 0.5C ) 80% DOD

Environmental

 Parameter

Charge&Discharge Temperature (℃)

Charge:   0°C~+55°C / Discharge: -20°C~+55°C

Optimal Storage Temperature (℃)

5°C～+35°C

Relative Humidity

40%~80%

Ingress Protection

IP65

Mechanical

Parameter

Terminal

M8

Dimensions (L*W*H)   (mm)

522*268*218

Weight (Kg)

23.5±0.5

Certificate

UN38.3   MSDS
