All-in-One Solution for Commercial & Industrial Applications with PV Integration

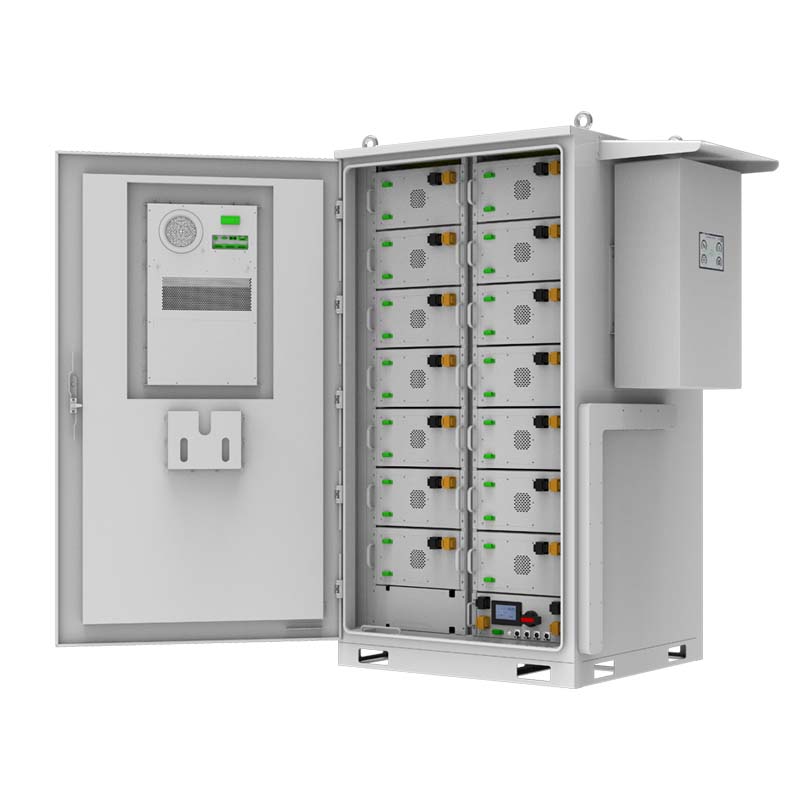

The 261kWh/100kW hybrid energy storage cabinet is a high-performance, all-in-one solution designed for commercial and industrial energy management. It integrates a 261kWh LFP battery system with PV input capability and 100kW grid-tie output, providing a comprehensive solution for energy independence, peak shaving, and backup power.
Engineered for reliability and efficiency, it features advanced battery management, flexible solar integration via multiple MPPTs, and robust thermal control. This system is ideal for maximizing solar self-consumption, reducing electricity costs, and ensuring power continuity for critical operations.
261kWh capacity in a compact cabinet footprint, utilizing 314Ah LFP cells for superior energy density, safety, and long cycle life.
Supports flexible solar array configurations with high PV input capacity, maximizing renewable energy harvest and self-consumption.
Seamlessly manages power flow between PV, battery, grid, and loads to optimize efficiency and reduce operating costs.
Meets international grid standards and safety certifications, ensuring safe, stable, and compliant operation in various markets.
The hybrid system intelligently manages energy from multiple sources - solar PV, grid, and battery storage - to optimize energy usage, reduce costs, and ensure reliable power supply.
Solar panels and the grid supply power. The system prioritizes using solar energy to charge the 261kWh battery and power loads directly.
Excess energy is stored in the LFP battery. The advanced BMS ensures optimal charging, balancing, and temperature management.
The hybrid inverter converts DC to AC and intelligently manages power flow between all energy sources, the battery, and the loads.
Supplies up to 100kW of clean, stable power. During grid outages, it automatically switches to backup mode to power critical loads.
Reduce electricity demand charges by discharging stored energy during peak tariff periods for factories, malls, and office buildings.
Maximize the use of rooftop solar energy, storing excess generation for use at night or during cloudy periods.
Ensure uninterrupted power for critical operations. Form the core of islanded microgrids for remote sites or communities.
Power irrigation, cold storage, and processing facilities. Reduce reliance on diesel generators in off-grid or weak-grid areas.
Buffer high-power demand from electric vehicle charging stations, avoiding costly grid infrastructure upgrades.
Charge during low-cost periods, discharge during high-cost periods. Provide grid support services where market structures allow.
Complete technical parameters for the 261kWh / 100kW hybrid energy storage cabinet system.
| Specifications | |
|---|---|
| Battery Cabinet | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 52.25 kWh / 1P52S |
| System Configuration | 261 kWh / 1P260S |
| Rated DC Voltage | 832V |
| DC Voltage Range | 728~936V |
| Max. Charge/Discharge Rate | 0.5P |
| Max. Depth of Discharge | 100% (25±2℃) |
| Cycle Life | ≥8,000 cycles |
| PV Input | |
| Max. Input Power | 150-250 kW (Configurable) |
| PV Voltage Range | 150~950V |
| MPPT Channels | 10 |
| Max. Input Current (per MPPT) | 42A |
| AC Side | |
| Rated Output Power | 100 kW |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99 / -0.8~+0.8 |
| THDi | ≤3% |
| DC Current Injection | <0.5% of rated output current |
| General | |
| Max. Round Trip Efficiency | ≥90% |
| Communication | CAN, Modbus TCP/IP, Ethernet |
| Fire Suppression System | Aerosol system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling + Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Altitude | ≤3000m (Derating above 2000m) |
| Dimensions (W*D*H) | ~1,050 * ~1,350 * ~2,400mm (Cabinet) |
| Weight | Approx. 2,600 kg |
| Safety/EMC | IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A |
| Grid Code Compliance | EN50549, VDE-AR-N 4105, G99, NRS097, CEI 0-21, etc. (Market specific) |
Our state-of-the-art manufacturing facility with advanced production lines and strict quality control processes.
Our energy storage cabinets have been successfully deployed in various projects worldwide.
For detailed quotations, system customization, or technical datasheets for our 261kWh/100kW hybrid energy storage cabinet, please contact our sales team.
