12.8V 100Ah Metal Case Lithium Battery

Features

•	A grade brand new prismatic LiFePO4 cells	•	Cell balance function
•	＞6000 cycles @80% DOD(25℃, 0.5C )	•	Metal Case, excellent heat dissipation, more safety
•	Over charge, over discharge, over temperature, low temperature, over current and short circuit protection	•	Certificate: UN38.3, MSDS IEC62619
•	LCD display screen to monitor cell SOC, voltage, temperature and alarm status	•	Max 4 battery packs can be connected in series/parallel

Electrical Characteristics

●●

	Model	LFP1.28KWH12.8V-P65L4
Electrical Parameter	Battery Type	LiFePO4
	Nominal Voltage (V)	12.8
	Nominal Capacity (AH)	100
	Energy (WH)	1280
	Pack Mode	4S1P
	Continuous Discharge Current (A)	50
	Charge Cut-off Voltage (V)	14.4
	Discharge Cut-off Voltage (V)	10.4
	Max.Charge Current (A)	100
	Max.Discharge Current (A)	100
	Recommend Discharge Current (A)	50
	Recommend Discharge Depth (％)	80
	Cycle Life	＞6000 cycles (25°C, 0.5C ) 80% DOD
	Function	---
	Communication	RS485
	Display	LCD
	Mounting	---
Environmental Parameter	Charge&Discharge Temperature (℃)	Charge: 0°C~+55°C / Discharge: -20°C~+60°C
	Optimal Storage Temperature (℃)	5°C～+35°C
	Relative Humidity	40%~80%
	Ingress Protection	IP65
Mechanical Parameter	Terminal	M6
	Dimensions (LWH) (mm)	280200170
	Weight (Kg)	13.3±0.5
Certificate		UN38.3 MSDS IEC62619

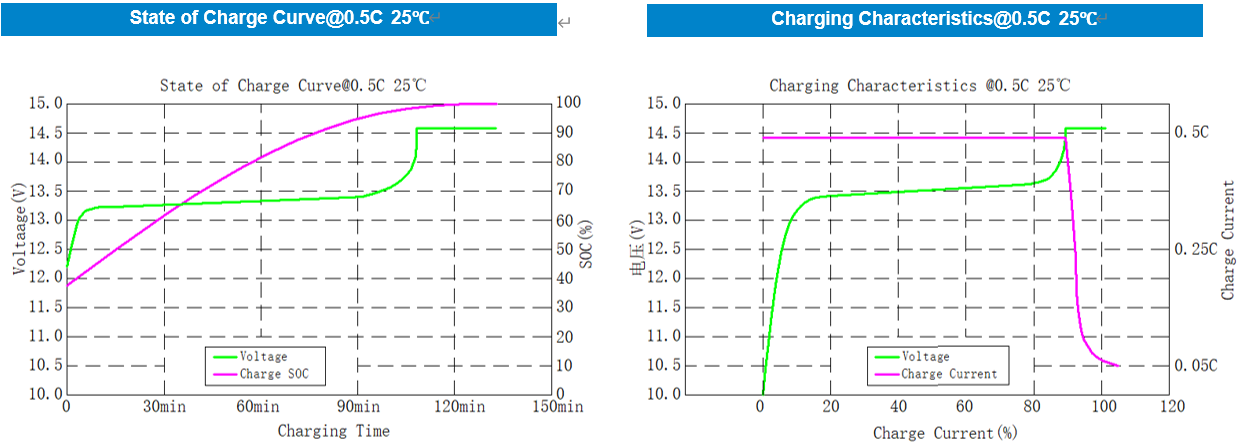

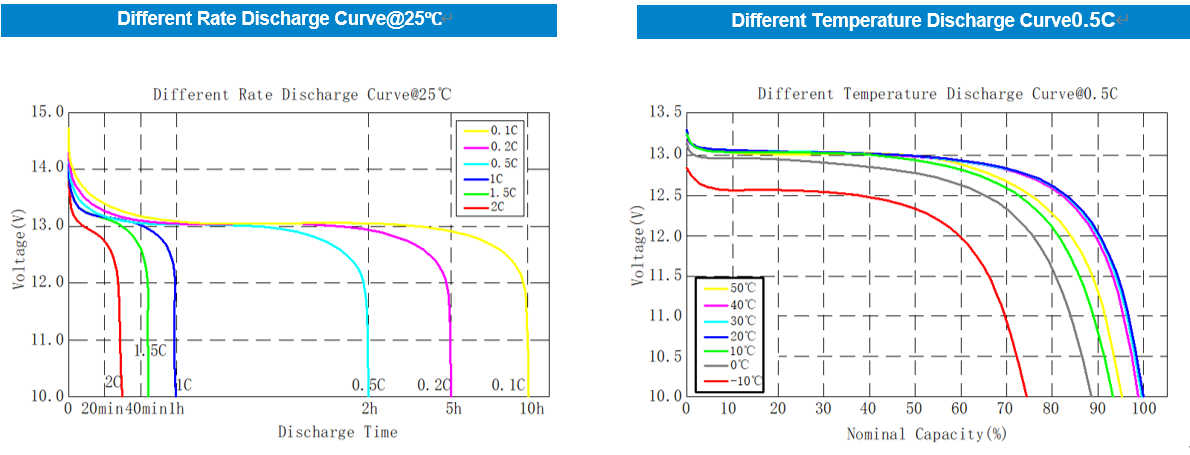

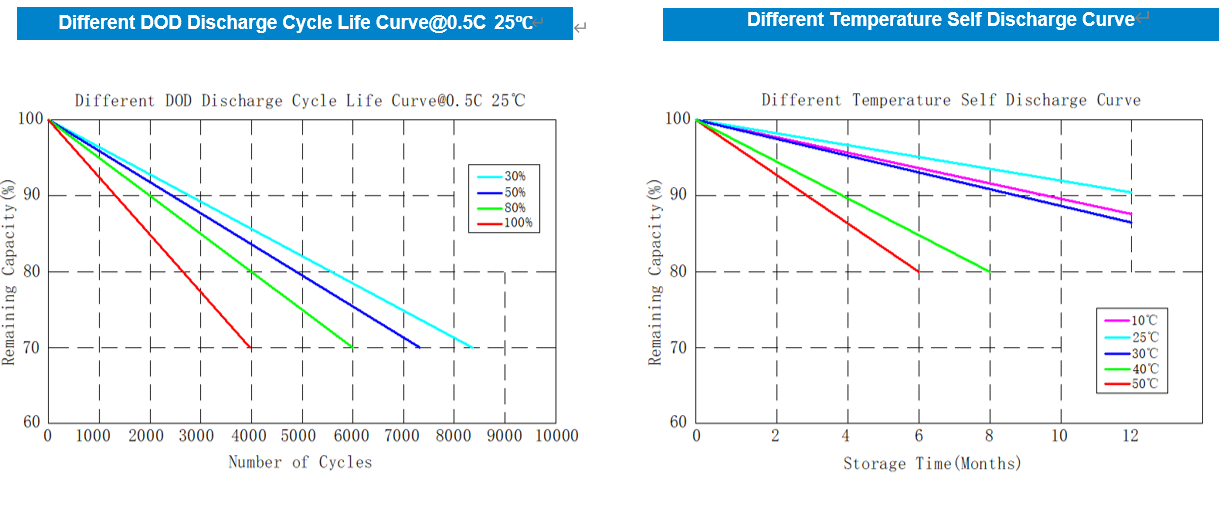

Performance characteristics

Highlight

● A-grade brand-new prismatic LiFePO4 cells

● >6000 cycles @80% DOD(25℃, 0.5C)

● LCD display screen to monitor cell SOC, voltage, temperature and alarm status

● Cell balance function

● Metal Case, excellent heat dissipation, more safety

● Over charge, over discharge, over temperature, low temperature, over current and short circuit protection

● Certificate: UN38.3, MSDS, IEC62619

● Max 4 battery packs can be connected in series/parallel
